BURNDY

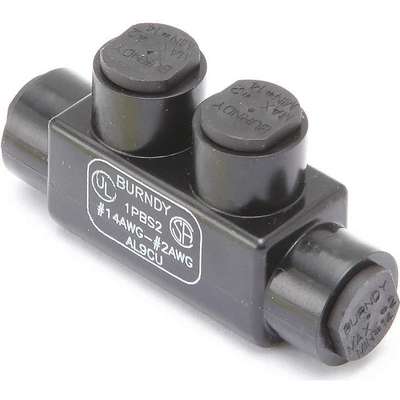

Burndy 2.38"L 2-Port Insulated Multitap Connector, Double-Sided Entry, T, 2 AWG Max. Conductor Size
Hover over image to magnify
#927023-7 | Pkg Qty: 1
$30.44 pkg | $30.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Minimum Conductor Size
14 AWG
Brand
BURNDY
Number of Ports
2
Connector Type
Double-Sided Entry, T
Pack Quantity
1
Direct Burial Rated
No
Screw Material
Aluminum
Head Style
Hex
Shipping Weight
.05 lb.
Insulation Material
Plastisol
Stud Size
3/16 in.
Item
Insulated Multitap Connector
Stud/Tab Size
3/16 in.
Length
2.38 in.
Type
2 Ports, In Line
Maximum Conductor Size
2 AWG
Width
1.22 in.
Mfr. Part Number
1PBS2
General
Compatible with Product Type
Code Conductor
No. of Ports
2
For Conductor Material
Aluminum, Copper
RoHS Compliant
Yes
For Stranded Copper Wire Size - Maximum
2 AWG
Standards
CSA Certified, AL/CU Rated
For Stranded Copper Wire Size - Minimum
14 AWG
Tap Shape
T
For Wire Size
12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Torque
45 in-lb
Hex Size
5/32 in
Wire Size Range
14 AWG – 2 AWG
Product Description
This commercial type Multitap Connector is designed for indoor applications.
Expertly Selected Product Pairings
Item Barcode
Insulated Multitap Connector,1.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 22C277 | Insulated Multitap |
 | UNSPSC CODES | 39121408 | |
 | VMRS (ATA) CODES | 053-006-009 | Insulated Multitap |
