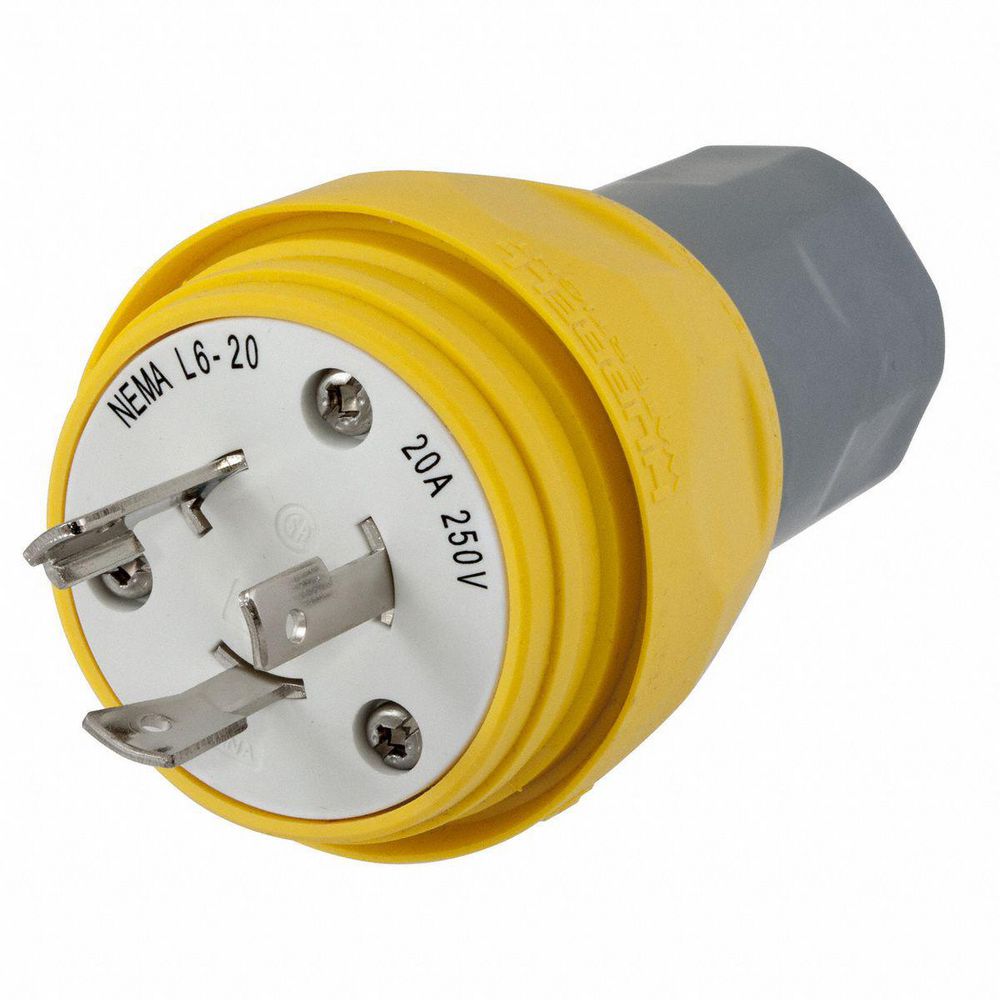

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L6-20P

Name: Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L6-20P
Brand: HUBBELL WIRING DEVICE-KELLEMS
SKU: 9269936
Price: 77.21 USD
Availability: InStock

Hover over image to magnify

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L6-20P Video

Double tap image to magnify

#926993-6Pkg Qty: 1

$77.21 pkg | $77.21 ea

In Stock

Shipping to 43085

Expected to arrive Thu. Mar 27.

Technical Specifications

Key Specifications

Amperage

20 A

Mfr. Part Number

HBL26W48

Antimicrobial

Minimum Operating Temperature

-40 °C

Blade Material

Nickel-Plated Brass

NEMA Configuration - Plugs & Connectors

L6-20

Body Length

2.51 in.

NEMA Plug Configuration

L6-20P

Brand

HUBBELL WIRING DEVICE-KELLEMS

NEMA Rating

4, 4X, 6, 6P

Color Family

Yellow

Number of Blades

Connection Orientation

Straight

Number of Poles

Cord Size

0.325 in. to 0.875 in.

Number of Wires

Corrosion Resistant

Outside Diameter

2.51 in.

Current Rating

20 A

Overall Length

2.51 in.

Description

Twist Lock

Package Quantity

Grade

Industrial

Phase

Single

2 HP

Polarized

Yes

Horsepower

2 hp

Shipping Weight

.55 lb.

Housing Color

Yellow

Shrouded

Housing Material

Thermoplastic Elastomer

Standards

ANSI, NEMA WD-1 and WD-6

IP Rating

IP69K

Voltage

250V AC

Item

Watertight Locking Plug

Wire Connection Type

Screw Terminals

Material

Thermoplastic Elastomer, Valox

Wiring Style

Standard

Maximum Operating Temperature

60 °C

General

Amps - Plugs and Receptacles

NEMA Plug Configuration - Plugs and Receptacles

L6-20P

2.0

Special Features

Moisture, Dust and Weather Resistant

Product Description

Feature keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
