HUBBELL WIRING DEVICE-KELLEMS

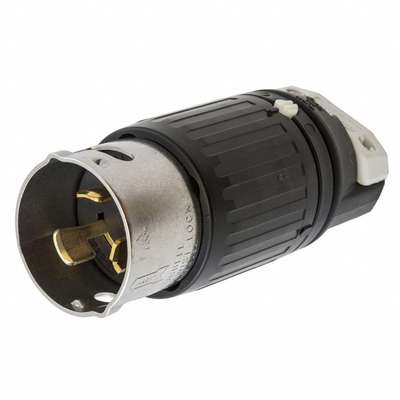

Hubbell Wiring Device-Kellems 50A Industrial Grade Shrouded Locking Plug, Black/White; NEMA Configuration: Non-NEMA, 50A
Hover over image to magnify
#926993 | Pkg Qty: 1
$165.35 pkg | $165.35 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
50 A
Mfr. Part Number
CS6361C
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Blade Material
Brass
Minimum Wire Size
10 AWG
Body Length
6.37 in.
NEMA Plug Configuration
Non-NEMA
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Blades
3
Color Family
Black / White
Number of Poles
2
Connection Orientation
Straight
Number of Wires
3
Cord Size
0.750 in. to 1.125 in.
Outside Diameter
2.563 in.
Corrosion Resistant
No
Overall Length
6.37 in.
Current Rating
50 A
Package Quantity
1
Description
Grounding, Non-NEMA
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Shipping Weight
1.22 lb.
Grade
Industrial
Shrouded
Yes
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, UL 498
Housing Material
Nylon
Sub-Category
Plugs
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Plug
Voltage
125V AC
Material
Super Tough Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
Maximum Wire Size
6 AWG
General
Amps - Plugs and Receptacles
50
NEMA Plug Configuration - Plugs and Receptacles
50A, Non-NEMA
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
Product Description
50A Locking Devices
- Hubbell® Twist-Lock®
- Box terminal with Allen-head threaded lug permits high clamping pressure on conductors without damaging the threads. Receptacles have chrome-plated brass nosepieces that cannot be distorted to mate with the wrong device. Connectors and plugs have a super-tough, ribbed-nylon housing for superior impact/crush resistance and secure gripping. Stainless steel shroud on plugs protects plug blades from damage.
