HUBBELL WIRING DEVICE-KELLEMS

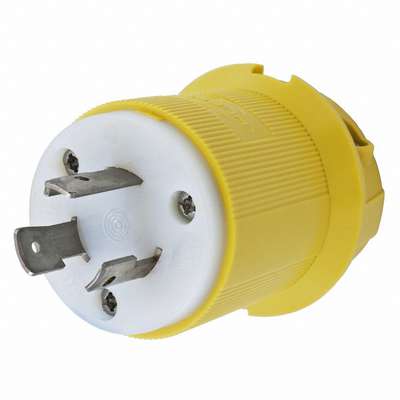

Hubbell Wiring Device-Kellems 20A Marine Grade Non-Shrouded Locking Plug, Yellow; NEMA Configuration: L6-20P
Hover over image to magnify
#926990-3 | Pkg Qty: 1
$41.17 pkg | $41.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
8 AWG
Blade Material
Nickel-Plated Brass
Mfr. Part Number
HBL23CM21
Body Length
2-3/4 in.
Minimum Operating Temperature
-40 °C
Boot Code
B
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L6-20
Color Family
Yellow
NEMA Plug Configuration
L6-20P
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.360 in. to 0.930 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
20 A
Outside Diameter
2.26 in.
Description
Corrosion Resistant, Grounding
Overall Length
2.75 in.
Face Diameter
1.97 in.
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Marine
Shipping Weight
.26 lb.
Grounding
Grounded
Shrouded
No
HP
2 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Plugs
Housing Color
Yellow
UL 94 Flammability Rating
HB
Housing Material
Nylon
Voltage
250V AC
IP Rating
IP20
Wire Connection Type
Screw Terminals
Item
Locking Plug
Wiring Style
Standard
Material
Nylon
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L6-20P
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion Resistant
HP
2.0
Voltage - Plugs and Receptacles
250V AC
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Plug,250VAC,20A,L6-20P,2P,3W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D564 | Plug,250VAC, 20A,L6-20P, |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,250VAC, 20A,L6-20P, |
