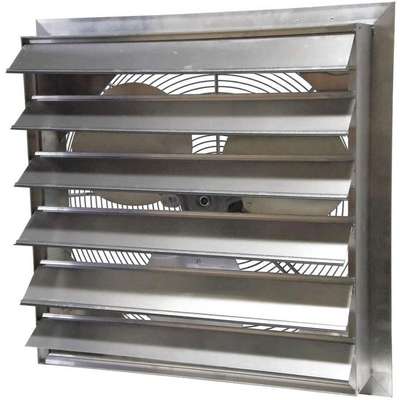

Canarm Shutter Mounted Hazardous Location Exhaust Fan: 24 in Blade, 1 Speed, 1/3 hp, 5,520 cfm, 1 ph

Hover over image to magnify
Exhaust Fan, Hazardous
PI_Asset_3736272
Exhaust Fan, Hazardous
PI_Asset_3736272

#926945-6 | Pkg Qty: 1

$1,389.65 pkg | $1,389.65 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
cETLus
Motor HP
1/3
Bearing Type
Ball
Mounting Position
Horizontal
Blade Diameter
24 in.
Number of Blades
3
Blade Material
Aluminum
Package Quantity
1
Brand
CANARM
Phase
1
Height
28-3/4 in.
Shaft Diameter
1/2 in.
Item
Shutter Mounted Explosion Proof Exhaust Fan
Shipping Weight
65 lb.
Mfr. Part Number
AX24-4
Voltage
115/208-230 VAC
Motor Enclosure
Explosion Proof Fan Cooled
Width
28-3/4 in.
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Discharge Direction
Horizontal
Maximum Exhaust Airflow @ 0.000 in SP
4001 to 6000 cfm
Exhaust Airflow @ 0.000 in SP
5,520 cfm
Maximum Noise Level
30 sones
Exhaust Airflow @ 0.100 in SP
5,410 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Exhaust Airflow @ 0.125 in SP
5,330 cfm
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Exhaust Airflow @ 0.250 in SP
5,130 cfm
Motor Horsepower
1/3 hp
Fan Style
Shutter-Mounted
Motor Speed
1,725 RPM
Fan Voltage
115/208-230V AC
Nameplate Voltage
115/208-230V AC
For Cut-Out Height
25 in
Noise Level @ 0.000 in SP @ 5 ft
30 sones
For Cut-Out Width
25 in
Noise Level @ 0.100 in SP @ 5 ft
30 sones
For Maximum Wall Thickness
5 in
Nominal Voltage
115/208-230V AC
For Minimum Wall Thickness
5 in
Number of Fans
1
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Square Opening Required
20-1/2 to 30 in
Full Load Current
6.6 A
Supply Airflow @ 0.000 in SP
5,520 cfm
Guard Finish
Chrome
Vent Design
Ductless
Guard Type
Intake
Ventilation Type
Exhaust
Includes
Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Venturi Depth
5/8 in
Manufacturer Warranty Length
1 yr
Venturi Diameter
1/8 in
Maximum Airflow
5,520 cfm

Product Description

Shutter Mounted Explosion Proof Exhaust Fan, Explosion Proof, Propeller Dia.24, CFM @ 0.000-In. SP 5,520 cfm, Sones @ 0.000-In. SP @ 5 Ft. 30, Voltage 115/208-230, 60 Hz, 1 Phase, Full Load Amps 6.6/3.1-3.3, Watts 250 W, Motor HP 1/3, Bearing Type Ball, Motor RPM 1,725 RPM, Motor Type Explosion Proof, Motor Enclosure Explosion Proof Fan Cooled, Motor Insulation Class B, Max. Ambient Temp. (F) 104 Degrees F, Height28 3/4 in, Width28 3/4 in, Max. Depth18 3/4 in
