DAYTON

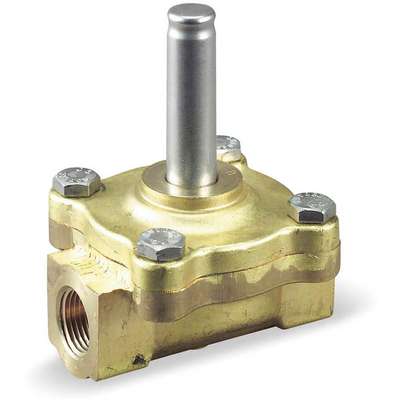

Brass Steam Solenoid Valve Less Coil, 2-Way Valve Design, Normally Closed Valve Configuration
Hover over image to magnify
#926936-4 | Pkg Qty: 1
$125.40 pkg | $125.40 ea
Drop Ship Item
Shipping to 60045
Required Items
Items below are required. They are not included and need to be ordered separately.
Technical Specifications
Key Specifications
Agency Compliance
CSA, NFPA, UL
Mfr. Part Number
8610
Body Material
Brass
Overall Height
4-21/32 in.
Brand
DAYTON
Overall Length
4-5/32 in.
Coefficient of Volume
3.6
Package Quantity
1
Configuration
Normally Closed
Pipe Size
1/2 in.
Item
Steam Solenoid Valve Less Coil
Shipping Weight
1.4 lb.
Maximum Fluid Temperature
250°F
Valve Design
2-Way
Media Type
Air, Steam, Water
orifice Dia._spec_s
5/8 in.
General
Body Material - Valves
Brass
Pipe Size - Valves
1/2 in
Coil Insulation Class
F
Safe Working Steam Pressure
15 psi
Environmental Rating - Valves
Indoor, Outdoor
Safe Working Water Pressure
300 psi
For Use With
Dayton Solenoid Coils
Seal Material - Valves
EPM
Max. Operating Pressure Differential Air/Inert Gas
100 psi
Solenoid Valve Product Group
Steam Solenoid Valve Less Coil
Max. Operating Pressure Differential Light Oil
100 psi
Steam Capacity
165 lb/hr
Max. Operating Pressure Differential Water
100 psi
Valve Configuration
Normally Closed
Media - Valves
Air, Steam, Water
Valve Ways and Positions
2-Way
Min. Operating Pressure Differential
5 psi
Product Description
2-Way Steam Solenoid Valves
- Mount in any position
- High-temperature gaskets can be used in hot water or steam applications. Use with Class H insulation coils (sold separately).
- Standards: UL; CSA; Fluid Control Institute, Inc.; National Fluid Power Association (NFPA).
- WARNING: Not for use in explosive atmospheres.
