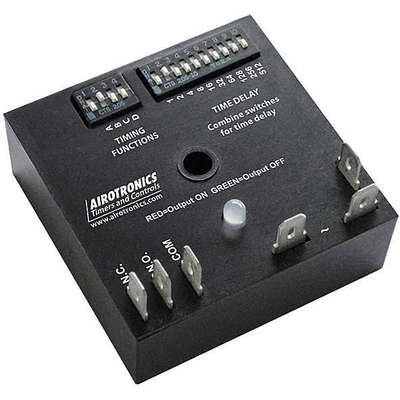

Airotronics Multi-Function Encapsulated Timing Relay, Function: On Delay, Off Delay, Single Shot, Interval, Rese

Hover over image to magnify
Encapsulated Timer Relay,10A,
Encapsulated Timer Relay,10A,
Airotronics Multi-Function Encapsulated Timing Relay, Function: On Delay, Off Delay, Single Shot, Interval, Rese Video

#926912-2 | Pkg Qty: 1

$50.45 pkg | $50.45 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment Method
Dip Switch
Maximum Time Setting
1023 min.
Base Type
Surface
Mfr. Part Number
MC4003631H
Body Depth
2-1/2 in.
Minimum Time Setting
0.1 sec.
Body Height
0.83 in.
Mounting
Surface
Body Width
2-1/2 in.
Number of Contacts
2
Brand
AIROTRONICS
Number of Functions
5
Coil VA Rating
24VDC
Number of Pins
6
Coil Volts
24 VDC
Operating Functions
1, 2, 4, 5
Contact Form
SPDT
Output
Relay
Contact Material
Silver Tin
Overall Height
1.3 in.
DC Contact Rating
10 A @ 24 V
Package Quantity
1
Display
LED
Pins
6
Function
On Delay, Off Delay, Single Shot, Interval, Resettable Single Shot/Watchdog
Resistive Contact Amp Rating
10A
HP @ 120 V
NO, 1/10 @ 3AFLA
Shipping Weight
.25 lb.
HP @ 240 V
NO, 1/6 @ 2AFLA
Socket Code
Surface
Hz
Not Applicable
Status Indicator
LED
Input Voltage
24 VDC
Timing Range
0.10 sec. to 1023 min.
Input or Control Voltage
24 VDC
Type
Dip Switch
Item
Multi-Function Encapsulated Timing Relay
Type of Output
Relay
General
Adjustment Method - Timer
Dip Switch
HP @ 240V
NO, 1/6 @ 2AFLA
Body Depth - Relay
2.5 in
Max. Time Setting - Timer
17 hr
Body Height - Relay
0.83 in
Min. Time Setting - Timer
0.1 sec
Body Width - Relay
2.5 in
Mounting - Relay
Surface
Contact Form - Relay
SPDT
Number of Pins - Relay
6
DC Contact Rating - Relay
10A @ 24V
Overall Height - Relay
1.3 in
Function - Timing Relay
Interval, Off Delay, On Delay, One Shot, Watchdog (Resettable One Shot)
Standards
UL508, Ulr
HP @ 120V
NO, 1/10 @ 3AFLA
Timer Range
0.10 sec. to 1023 min.

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

When power is applied to the coil (the start switch must be jumped in multifunction timers), the interval timing period begins and the contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. When the interval timing period ends the contacts return to their original position. The unit resets when power is removed from the coil, making the unit ready for a new cycle.
