DAYTON

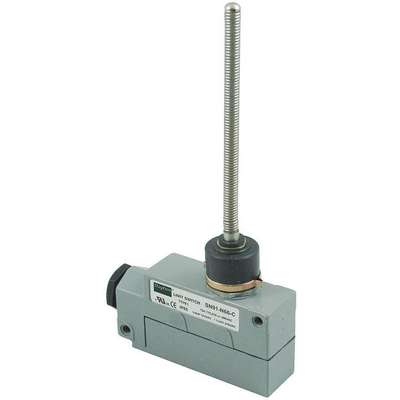

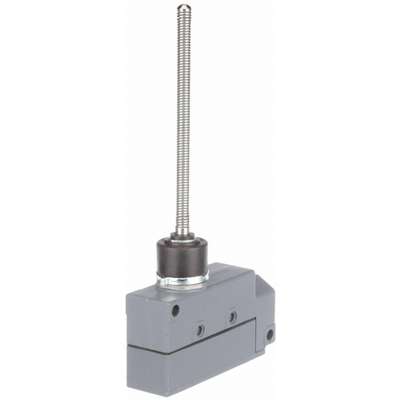

Dayton Wobble Stick General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Omnidirectional Moveme
Hover over image to magnify
#926873-6 | Pkg Qty: 1
$59.70 pkg | $59.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 480 V
IP Rating
65
Action
A
Item
General Purpose Limit Switch
Actuator Length
5.12 in.
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Top
Mfr. Part Number
12T924
Actuator Style
Wobble Stick, Boot Sealed
Movement
Omnidirectional
Amperage
15 A
NEMA Rating
3, 4, 13
Basic Actuator Style
Wobble Stick
Operating Force
5 oz.
Body Depth
1.01 in.
Operating Temperature Range
-1 deg. F to 176 deg. F
Body Height
1.76 in.
Package Quantity
1
Body Style
Miniature
Series
Dayton
Body Width
3.39 in.
Shipping Weight
.5 lb.
Boot Sealed Actuator
Yes
Style
Sealed Wobble Stick Coil
Brand
DAYTON
Threaded for Panel Mounting
No
Conduit Size
1/2 in. NPT
Travel
Maximum Pre-Travel 15, Over Travel N/A
Contact Form
SPDT
Type
General Duty, Diagonal Side Mounted
DC Contact Rating
15 A @ 480 V
Voltage
480 VAC/DC
Depth
1.01 in.
Voltage Rating
480 VAC/DC
Electrical Connection
Screw Terminals
Warranty
5ZZX3
Hazardous Location
No
Width
3.39 in.
Height
6.88 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
15A @ 480V
Contact Form- Switches
SPDT
Actuator Length - Limit Switch
5.12 in
DC Contact Rating - Limit Switch
15A @ 480V
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Wobble Stick
Mounting Hole - Limit Switch
(2) 0.21 in dia
Basic Actuator Style - Limit Switch
Wobble Stick
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Body Depth - Limit Switch
1.01 in
Mounting Hole Spacing - Limit Switch
2.95 in x 1.22 in
Body Height - Limit Switch
1.76 in
Operating Temp. Range
-14° to 176°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
3.39 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
Yes
Product Description
This enclosed limit switch features a wobble stick actuator, screw terminal connectors, and omnidirectional movement.
