DAYTON

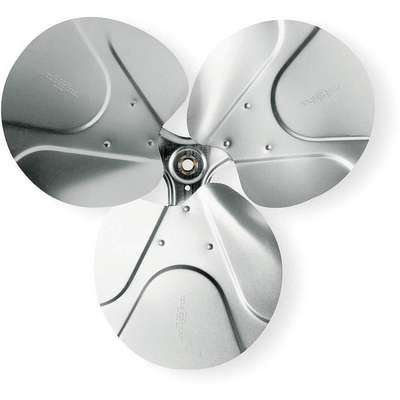

Dayton Propeller, 30 in Propeller Dia. (In.), 6122/4556 CFM @ 0.000-In. SP, Aluminum Blade Material
Hover over image to magnify
#926855-1 | Pkg Qty: 1
$133.16 pkg | $133.16 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Blade Height
4-7/16 in.
Mfr. Part Number
4C457
Blade Material
Aluminum
Number of Blades
3
Blade Width
11-7/8 in.
Package Quantity
1
Bore Diameter
5/8 in.
Propeller Diameter
30 in.
Brand
DAYTON
Rotation
CW Facing Discharge
Item
Propeller
Shipping Weight
3.3 lb.
General
Blade Height (In.)
4 7/16 in
Pitch (Deg.)
20 Degrees
Blade Width (In.)
11 7/8 in
Propeller Dia. (In.)
30 in
Bore Dia. (In.)
5/8 in
RPM High
1,075 RPM
CFM @ 0.000-In. SP
6122/4556
RPM Low
800 RPM
CFM @ 0.125-In. SP
5322/3568
Remarks
View Catalog Page For Better Selection Criteria
CFM @ 0.250-In. SP
4676/2755
Required HP @ Higher RPM
1/2 hp
For Use With
Exhaust Fans and Circulators
Required HP @ Lower RPM
1/4 hp
Max. RPM
1140
Product Description
Air Circulator and Exhaust Fan Aluminum Replacement Propellers
- No. of blades: 3 CW rotation facing discharge Embossed aluminum blades and spiders for strength and rigidity Hubs include set screws (hub on intake side) For low static pressure applications
Expertly Selected Product Pairings
Item Barcode
Blade,Fan,Propeller Dia.30"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4C457 | Blade,Fan, Propeller |
 | UNSPSC CODES | 40101603 | |
 | VMRS (ATA) CODES | 053-006-009 | Blade,Fan, Propeller |
