WALTER VALENITE

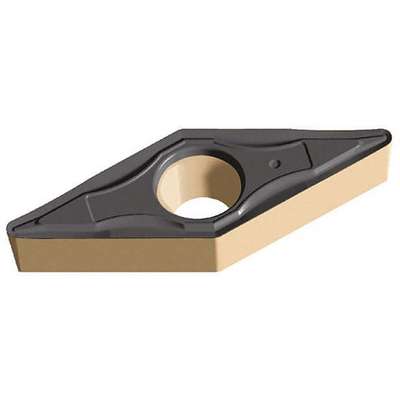

Diamond Turning Insert, Chip-Breaker Code PF4, Inscribed Circle 3/8", TiAlN+Al2O3+ZrN
Hover over image to magnify
#926826-6 | Pkg Qty: 10
$249.60 pkg | $24.96 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
VCMT332-PF4 WSM10
Insert Thickness
0.1880 in.
ANSI Number
VCMT3(3)0.5
Item
Diamond Turning Insert
Brand
WALTER VALENITE
Mfr. Part Number
VCMT160408-PF4 WSM10
Cast Iron Compatibility
No
Mounting Hole Diameter
0.173 in.
Chip-Breaker
Yes
Mounting Style
Screw
Coating
PVD
Non Ferrous Compatability
No
Corner Radius
1/32 in.
Nose Radius
0.0310 in.
Cutting Direction
Neutral
Number of Cutting Edges
2
Cutting Direction
Neutral
Number of Edges
2
Grade
WSM10
Pack Quantity
10
Hardened Compatibility
No
Primary Material Application
Nickel, Stainless Steel, Titanium
ISO Number
VCMT160408-PF4 WSM10
Rake
Positive
Included Angle
35
Relief Angle
7 deg.
Inscribed Circle
3/8 in.
Shape
Rhombic
Insert Application
Finishing
Shipping Weight
1.8 lb.
Insert Material
Carbide
Thickness
3/16 in.
Insert Shape
Diamond
Turning Insert Shape
Diamond
Insert Size
332
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Insert Style
VCMT
General
Chip-Breaker Code
PF4
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Clearance Angle
7 Degrees
Manufacturer Grade
WSM10
Cutting Application
Turning
Material - Machining
Carbide
Cutting Edge Length
16.00mm
Measurement System
Fractional Inch
Finish - Machining
TiAlN+Al2O3+ZrN
Primary Material Application ISO Code
M, S
For Use With
Toolholders, Boring Bars
Product Description
Diamond Turning Insert, Chip-Breaker Code PF4, Inscribed Circle 3/8 in, TiAlN+Al2O3+ZrN, ANSI Code VCMT332-PF4 WSM10, Clearance Angle 7 Degrees
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Item Barcode
Turning Insert,332 Insert,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 53VJ68 | Turning Insert,332 |
 | UNSPSC CODES | 23242105 | |
 | VMRS (ATA) CODES | 053-006-009 | Turning Insert,332 |
