SCHNEIDER ELECTRIC

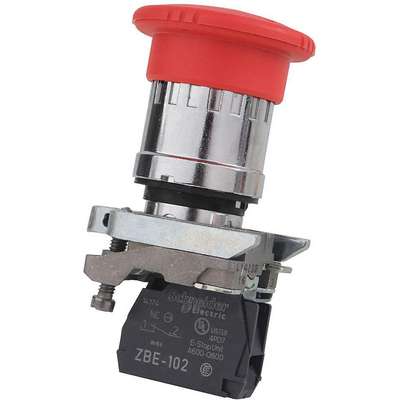

Schneider Electric Emergency Stop Push Button, Type of Operator: 40mm Mushroom Head, Size: 22mm, Action: Maintained Pus
Hover over image to magnify
#926825-3 | Pkg Qty: 1
$135.13 pkg | $135.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Maintained Push/Turn To Release
Material
Metal
Basic Material
Metal
Material of Construction
Die Cast Zinc
Bezel
Chrome Plated Zinc Die Cast
Mfr. Part Number
XB4BS8442
Brand
SCHNEIDER ELECTRIC
NEMA Contact Rating Designation
A600/Q600
Color Family
Red
NEMA Rating
4, 4X, 12, 13
Contact Form
1NC
Number of Operators
1
Contact Rating
10 A @ 600 VAC
Pack Quantity
1
Head Material
Plastic
Product Size
22 mm
IP Rating
66
Shipping Weight
.25 lb.
Illuminated / Non-Illuminated
Non-Illuminated
Size
22 mm
Item
Emergency Stop Push Button
Terminal Connection
Screw Clamp
Legend
No Legend
Type of Operator
40 mm Mushroom Head
General
Features
Panel Mounting
Standards
EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60364-5-53, EN/ISO 13850, JIS C 4520, UL508, CSA C22.2 N.14
Product Description
Emergency Stop Push Button, 22 mm, Maintained Push / Turn To Release Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 12, 13, 4, 4X, IP Rating 66, Legend No Legend
Expertly Selected Product Pairings
Item Barcode
Emergency Stop Push Button,Red
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 33HP33 | Emergency Stop Push |
 | UNSPSC CODES | 39122216 | |
 | VMRS (ATA) CODES | 053-006-009 | Emergency Stop Push |
