DAYTON

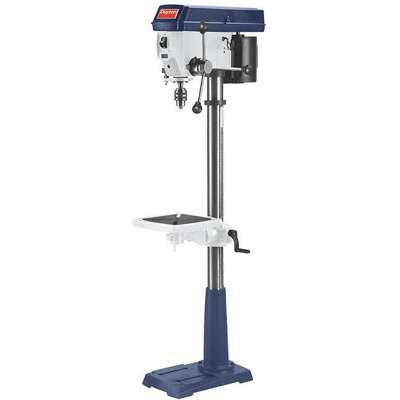

Dayton 1 Motor HP Floor Drill Press, Belt Drive Type, 15" Swing, 120 Voltage

Hover over image to magnify
Floor Drill Press,60 Hz,64" H,
Floor Drill Press,60 Hz,64" H,
Double tap image to magnify
Floor Drill Press,60 Hz,64" H,
Floor Drill Press,60 Hz,64" H,

#926807-4Pkg Qty: 1

$999.99 pkg | $999.99 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Application
General Purpose Drill Press
Package Quantity
1
Brand
DAYTON
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
139 lb.
Horsepower
1 HP
Speed Control
Fixed
Item
Floor Drill Press
Swing
15 in.
Mfr. Part Number
400H52
Voltage
120
Overall Depth
25 in.
General
Chuck Capacity
5/8 in
Nominal Voltage
115V AC
Chuck Style
Keyed
Quill Diameter
1 5/8 in
Column Diameter
2 3/4 in
Speed Adjustment
Step Pulley
Drill Press Application
Countersinking, Drilling, Reaming
Speed Range
240 to 3,200 RPM
Drill Press Type
Floor Stand
Spindle Speed Range
240 RPM - 3,200 RPM
Drill Spindle Travel
3 in - 4 in
Spindle Travel
3 5/32 in
Drilling Capacity in Steel
5/8 in
Spindle-to-Column Distance
7 1/2 in
Includes
Drill Chuck and Key, Motor
Table Length
12 in
Maximum Overall Height
64 in
Table Slot
Yes
Maximum Spindle Speed
3,200 RPM
Table Tilt
45 Degrees
Maximum Spindle-to-Base Height
45 in
Table Width
12 in
Maximum Spindle-to-Table Height
26 in
Tilting Angle
45 Degrees
Minimum Spindle Speed
240 RPM

Product Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 in, Spindle-to-Column Distance 7 1/2 in, Horsepower 1 hp, Voltage 120V AC, Spindle Taper 2MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 1 5/8 in, Drilling Capacity in Steel 5/8 in

Item Barcode

9268074
Floor Drill Press,60 Hz,64" H,
