DAYTON

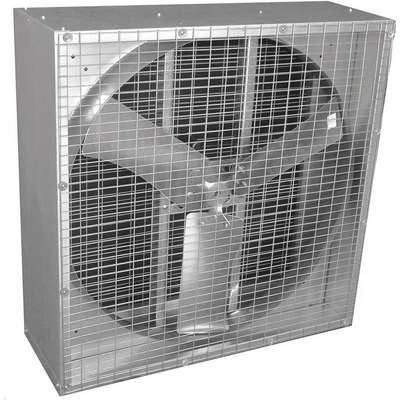

Dayton Agricultural Exhaust Fan: Direct Drive, 36 in Blade, 1/2 hp, Totally Enclosed Air Over, 1 ph
Hover over image to magnify
#926731-1 | Pkg Qty: 1
$2,095.92 pkg | $2,095.92 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Blade Diameter
36 in.
Mounting Location
Vertical
Brand
DAYTON
Mounting Location
Vertical
Item
Agricultural Exhaust Fan
Number of Blades
3
Mfr. Part Number
44YU07
Package Quantity
1
Motor Enclosure
TEAO
Phase
1
Motor RPM
825
Shipping Weight
118 lb.
Motor Type
Permanent Split Capacitor
Voltage
115/230
General
Assembled
Fully Assembled
Maximum Airflow
11,077 cfm
Assembly
Ships Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
11,077 cfm
Maximum Noise Level
28 sones
Exhaust Airflow @ 0.100 in SP
9,381 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 50 sones
Fan Style
Box
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
For Cut-Out Height
40 3/4 in
Motor Horsepower
1/2 hp
For Cut-Out Width
40 3/4 in
Motor Speed
825 RPM
For Maximum Wall Thickness
8 in
Nameplate Voltage
115/230V AC
For Minimum Wall Thickness
6 in
Noise Level @ 0.000 in SP @ 5 ft
28 sones
Full Load Current
5.2 A
Noise Level @ 0.100 in SP @ 5 ft
26.8 sones
Guard Finish
Zinc Plated
Number of Fans
1
Guard Type
Exhaust
Ventilation Type
Exhaust
Includes
Mesh Screen
Venturi Depth
4 in
Includes Motor
Yes
Product Description
Fan has galvanized steel venturi panels and propellers, and 1" x 2" galvanized mesh intake and discharge guards. For humid, corrosive, nonexplosive, and nonhazardous environments such as livestock and poultry houses. Shipped fully assembled.
Expertly Selected Product Pairings
Item Barcode
Exhaust Fan, 36 In, D/D
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 44YU07 | Exhaust Fan, 36 In, D/D |
 | UNSPSC CODES | 40101604 | |
 | VMRS (ATA) CODES | 053-006-009 | Exhaust Fan, 36 In, D/D |
