ACCURIDE

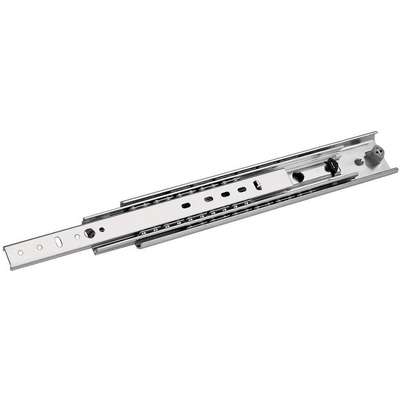

Side Drawer Slide, Non Disconnect, Conventional, Extension Type: Full, 2 PK
Hover over image to magnify
#926728-4 | Pkg Qty: 2
$120.14 pkg | $60.07 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ACCURIDE
Package Quantity
2
Item
Drawer Slide
Shipping Weight
6.8 lb.
Mfr. Part Number
C 3600-20D
General
Closed Length (In.)
20
Movement
Ball Bearing-Telescopic
Closure Type
Conventional
Side Mount Load Cap. per Pair
244 lb
Detent Type
Hold-In
Side Mount Load Cap. per Pair (Lb.)
244
Disconnect Method
Non Disconnect
Side Space
.75+.030/-.004 in
Glide Mechanism
Ball Bearing
Side Space (In.)
.75+.030/-.004
Height (In.)
2.09
Travel Length
20 in
Hold-In Detent (Y/N)
Y
Travel Length (In.)
20
Product Description
Drawer can be pulled out the full closed length of the slide. Once installed, drawer cannot be removed without disassembling the slides. Precision ball bearings and raceways ensure smooth drawer operation. Slide has a positive stop so drawer will not disengage from the slide, and a hold-in detent firmly holds the drawer in a closed position.
Item Barcode
Drawer Slide,Full,Non
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4KRU8 | Drawer Slide, Full,Non |
 | UNSPSC CODES | 31162703 | |
 | VMRS (ATA) CODES | 053-006-009 | Drawer Slide, Full,Non |
