SCHNEIDER ELECTRIC

Schneider Electric 24VDC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Octal

Hover over image to magnify

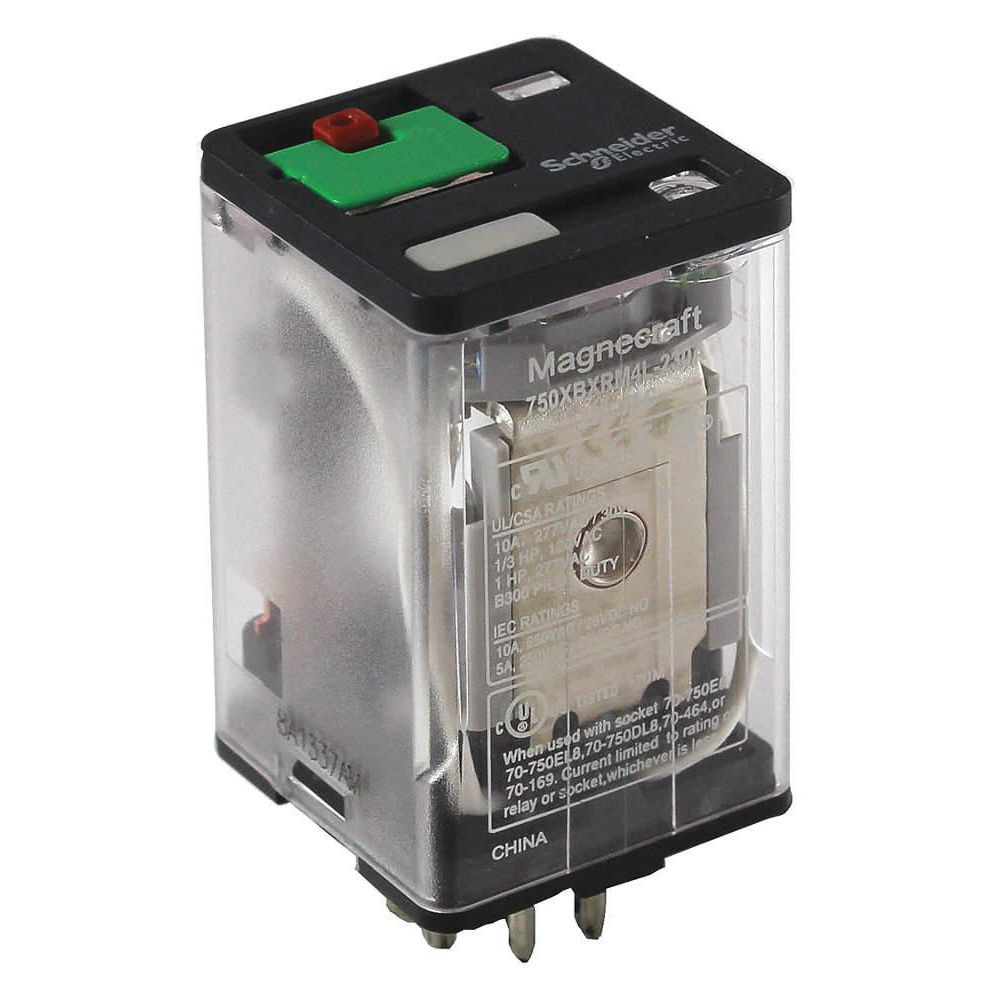

Plug In Relay,8 Pins,Octal,

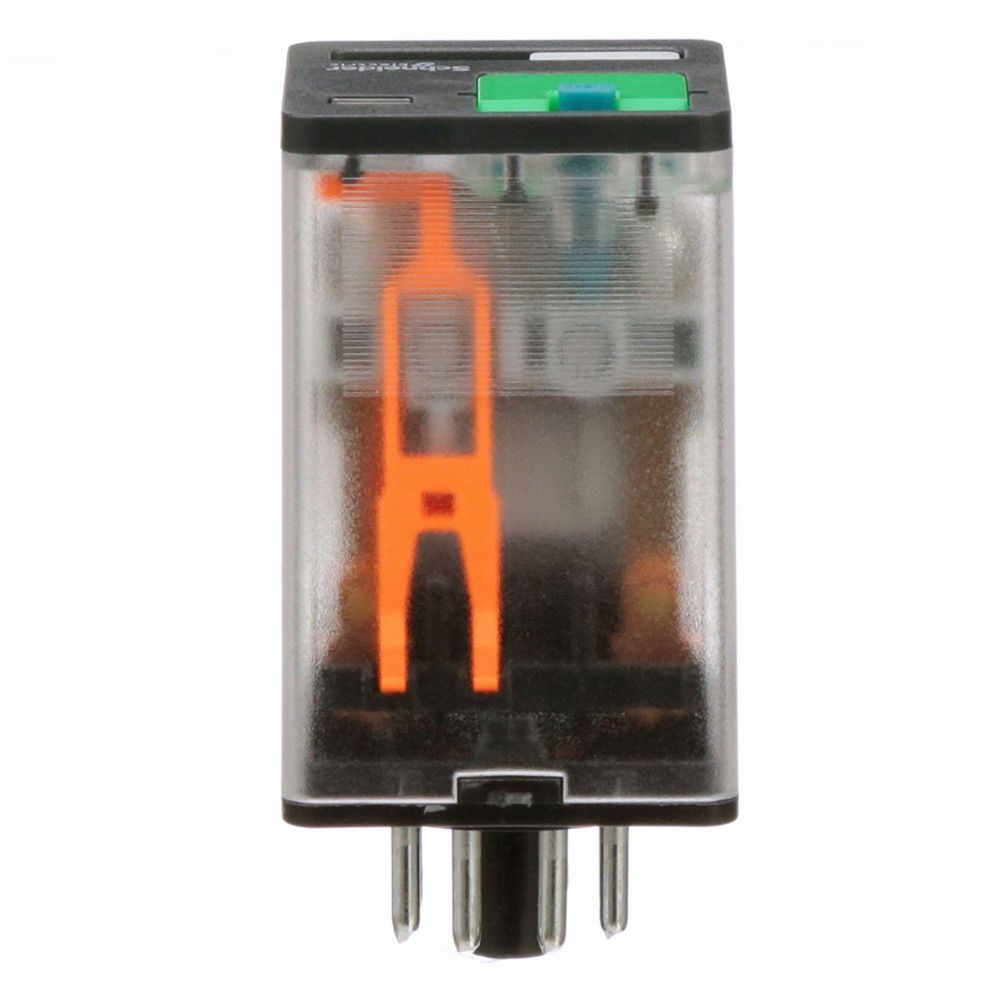

PI_Asset_3737443
PI_Asset_3737444
PI_Asset_3737445
PI_Asset_3737446
Plug In Relay,8 Pins,Octal,
PI_Asset_3737443
PI_Asset_3737444
PI_Asset_3737445
PI_Asset_3737446
Schneider Electric 24VDC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Octal Video

#926719-7 | Pkg Qty: 1

$28.80 pkg | $28.80 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 277 V
Mfr. Part Number
750XBXRM4L-24D
Base Type
Octal
Mounting
Plug In
Body Depth
1.38 in.
Number of Pins
8
Body Height
2.2 in.
Number of Poles
2
Body Width
1.4 in.
Overall Height
2.2 in.
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Coil VA Rating
1.4
Pins
8
Coil Volts
24 VDC
Plug-In Relay Style
General Purpose
Contact Form
DPDT
Push To Test
Lockable
Contact Material
Silver Alloy
Relay Power Consumption
1.4 W
Contact Rating
10 A @ 277 VAC/30 VDC
Resistive Contact Amp Rating
10
DC Contact Rating
10 A @ 28 V
Shipping Weight
.18 lb.
Hz
50/60
Socket
Mfr. No. 70-750E8-1, 70-750DL8-1, 70-464-1, 70-169-1
Input Power Consumption
1.4 W
Socket Code
A
Item
General Purpose Relay
Status Indicator
LED and Mechanical Flag
General
AC Contact Rating - Relay
10A @ 277V
HP @ 240V
1/2 hp
Base Type - Plug In Relay
Octal
Mounting - Relay
Plug In
Body Depth - Relay
1.38 in
Number of Pins - Relay
8
Body Height - Relay
2.2 in
Overall Height - Relay
2.2 in
Body Width - Relay
1.4 in
Power Consumption - Relay
1.4 W
Contact Form - Relay
DPDT
Socket Code - Relay
A
DC Contact Rating - Relay
10A @ 28V
Standards
CSA Certified, CE Marked
HP @ 120V
1/3 hp

Product Description

General Purpose Relay, Coil Volts 24V DC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Octal, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay A, Power Consumption - Relay 1.4 W, Contact Material Silver Alloy, Status Indicator LED and Mechanical Flag, Push To Test Lockable
