HARRINGTON

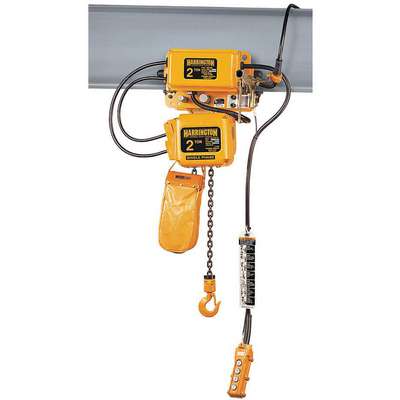

Harrington H4 Electric Chain Hoist, 6000 lb. Load Capacity, 115/230V, 20 ft. Hoist Lift, 3.5 fpm

Hover over image to magnify
Electric Chain Hoist w/Trolley,
Electric Chain Hoist w/Trolley,
Double tap image to magnify
Electric Chain Hoist w/Trolley,
Electric Chain Hoist w/Trolley,

#926718-4Pkg Qty: 1

$12,655.97 pkg | $12,655.97 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
Amps @ Low Volts
23.9
Load Capacity
6000 lb.
Brake
Pull Rotor Motor
Lubrication Type
Oil Bath
Brand
HARRINGTON
Material
Die Cast Aluminum
Classification
H4
Mfr. Part Number
SNERM030C-L-20
Clutch Style
Friction
Mfr. Warranty Length
1 yr.
Color Family
Yellow
Minimum Between Hooks
28-15/16 in.
Control
110V Push Button Control Pendant
Minimum Radius Curve
39-7/16 in.
Finish
Electrostatic Enamel
Motor HP
1.2
Hoist Lift
20 ft.
Package Quantity
1
Hoist Mount
Motorized Trolley
Phase
1
Housing Depth
26 in.
Reeving
2
Housing Length
26-15/16 in.
Shipping Weight
350 lb.
Housing Width
17-7/16 in.
Thermal Protection
No
Item
Electric Chain Hoist
Voltage
115/230
Lift Speed
3.5 fpm
General
Control Cord
16 ft
Min. Between Hooks
28 15/16 in
Fits Beam Flange W
3-7/32 in to 6-3/16 in
Min. Radius
39.4"
Headroom
28-15/16"
Standards
ASME B30.16, ASME HST-1, NFPA 70
Includes
Chain Container, Drop Stops, Motorized Trolley, Rubber Bumpers, Trolley Brakes
Trolley Speed
40 fpm

Product Description

Electric Chain Hoists

  • H4 Rated Die-cast aluminum Friction clutch Oil bath lubrication Include chain container SNERM Electric Chain Hoists with Motorized Trolley
  • Reliable pull rotor motor brake Grade 80 nickel-plated load chain Include drop stops, rubber bumpers, and trolley brakes Meet ASME B30.16, ASME HST-1, and NFPA 70 standards Designed with easy access control panel, and cast-iron guide for smooth operation. Motorized trolley has drop stops and rubber bumpers. Includes 4 ball bearing-supported rollers.
