SIEMENS

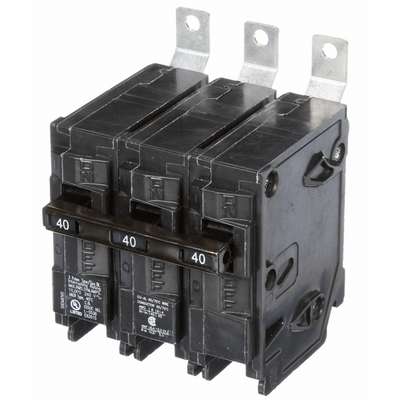

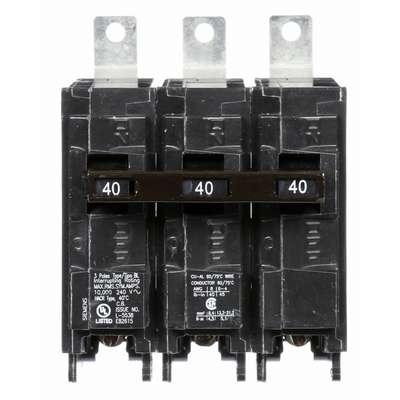

Siemens Bolt On Circuit Breaker, 40 Amps, Number of Poles: 3, 240VAC AC Voltage Rating
Hover over image to magnify
#926644-1 | Pkg Qty: 1
$618.56 pkg | $618.56 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
240VAC
Item
Miniature Circuit Breaker
Air @ 120 VAC
10kA
Length
3 in.
Air @ 125 VDC
Not Rated
Maximum Air Rating
10kA at 240VAC
Air @ 240 VAC
10kA
Maximum Wire Size
4 AWG (Al), 6 AWG (Cu)
Air @ 277 VAC
Not Rated
Mfr. Part Number
B340
Air @ 48 VDC
Not Rated
Minimum Wire Size
8 AWG
Air @ 480 VAC
Not Rated
Number of Poles
3
Air @ 600 VAC
Not Rated
Package Quantity
1
Air @ 65 VDC
Not Rated
Panelboard Mounting
Bolt-On
Amperage
40 A
Phase
Three
Amps
40 A
Phase Connection
ABC
Brand
SIEMENS
Series
BL
Circuit Breaker Type
Standard
Shipping Weight
.95 lb.
DC Voltage Rating
Not Rated
Terminal Connection
Lug
Depth
4 in.
Type
Panelboard Mount
For Use With
Siemens P1 Panelboards
Voltage
240VAC
Frame Size
125A/BL
Warranty
2ACC9
High Amp Trip Setting
40 A
Width
3 in.
Instantaneous Trip
Fixed
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Bolt On
AIR @ 240VAC
10kA
Compatible Panelboard/Load Center Series
P1
Circuit Breaker Actuator
Toggle
Standards
CSA Certified, HACR Rated, NOM Certified
Product Description
These B series miniature circuit breakers are bolted into place in panelboards, so they're more stable than plug-in breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard.
