PROTO

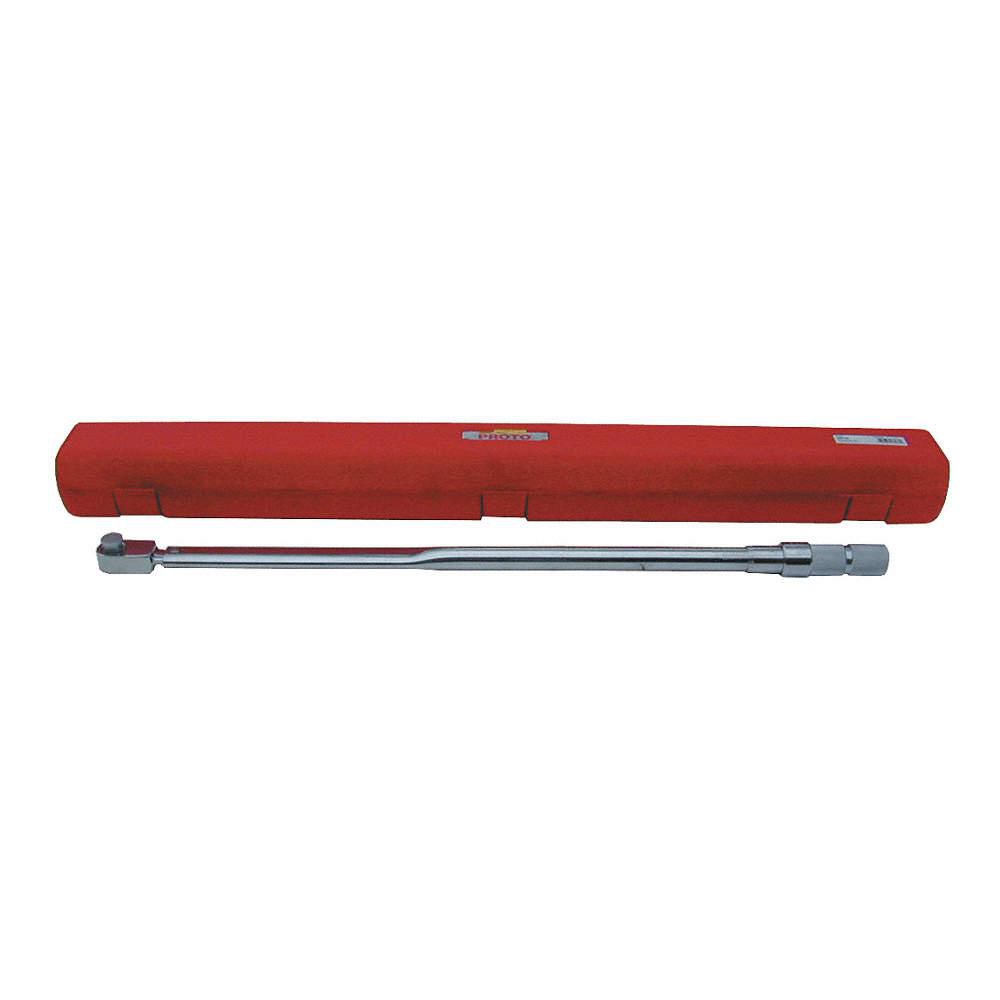

Proto Micrometer Torque Wrench: 3/4 in Drive Size, 120 ft-lb to 600 ft-lb, 2 ft-lb Torque Increments
Hover over image to magnify
#926635-6 | Pkg Qty: 1
$1,097.54 pkg | $1,097.54 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accuracy
±4% CW, ±6% CCW
Number of Geared Teeth
24
Brand
PROTO
Overall Length
41-1/4 in.
Calibration Certificate Included
No
Package Quantity
1
Corrosion Resistant
Yes
Ratcheting
No
Drive Size
3/4 in.
Rotation
Clockwise and Counterclockwise
Head Type
Standard
Shipping Weight
15.2 lb.
Indication
Audible Click
Tether Capable
Tether Capable
Item
Micrometer Torque Wrench
Torque Range
120 ft.-lb. to 600 ft.-lb.
Material
Alloy Steel
Torque Type
Foot-Pound
Mfr. Part Number
J6017B
General
Clockwise Accuracy
+/- 4%
Primary Scale Range
120 ft-lb to 600 ft-lb
Counterclockwise Accuracy
+/- 6%
Standards
Aerospace Certified SAE AS28431A, ASME B107.300-2010
Dual Scale
Yes
Torque Adjustability
Adjustable
Includes
(1) Case
Torque Increments
2 ft-lb
Min. Arc Swing
15 Degrees
Torque Limiting Mechanism
Click-Type
Min. Number of Cycles
5000
Torque Measurement Type
Foot-Pound
Primary Scale Increments
2 ft-lb
Torque Setting
Adjustable
Primary Scale Maximum Torque
600 ft-lb
Visual/Audible Indicators
Audible Click
Primary Scale Minimum Torque
120 ft-lb
Product Description
These non-insulated micrometer torque wrenches do not have a cushioned grip and are not suitable for use near electrical circuits. They can be set to apply a specific torque to a fastener so that the fastener is not damaged by overtorquing or loosens over time due to undertorquing.
Item Barcode
Micrometer Torque Wrench,3/4"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 426F15 | Micrometer Torque |
 | UNSPSC CODES | 27111715 | |
 | VMRS (ATA) CODES | 053-006-009 | Micrometer Torque |
