PNEUMADYNE INC

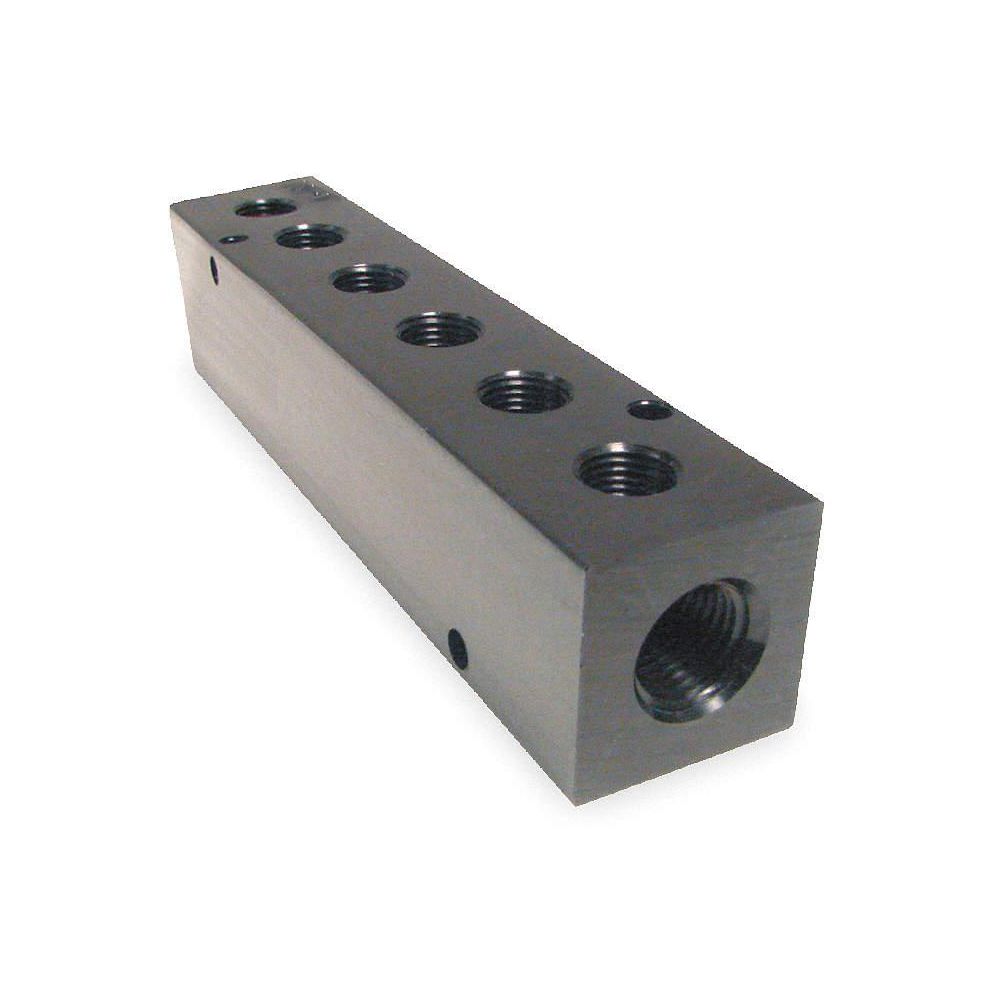

Manifold, 1/4" Inlet Size, 1/8"Outlet Size, NPT, Black Anodized Aluminum

Hover over image to magnify
Manifold,Metal,NPT,4-3/4 In. L
Manifold,Metal,NPT,4-3/4 In. L
Double tap image to magnify
Manifold,Metal,NPT,4-3/4 In. L
Manifold,Metal,NPT,4-3/4 In. L

#926628-6Pkg Qty: 1

$25.92 pkg | $25.92 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Body Material
Black Anodized Aluminum
Number of Outlets
6
Brand
PNEUMADYNE INC
Outlet Size
1/8 in.
Connection Type
NPT
Overall Height
1 in.
Inlet Size
1/4 in.
Overall Length
4-3/4 in.
Item
Manifold
Overall Width
1 in.
Maximum Pressure
1000 psi
Package Quantity
1
Mfr. Part Number
M10-125-6
Shipping Weight
.35 lb.
Mounting Hole Size
0.17 in.
Temperature Range (Deg. F)
-10 to 200 deg. F
Number of Inlets
2
General
Dimensions H x W x L
1 in x 1 in x 4.75 in
Material
Black Anodized 6061 Aluminum
Flow Direction
Inline
Maximum Operating Pressure
3,000 psi
For Fluid Type
Fluid, Gas
Maximum Operating Temperature
200 Degrees F
For Potable Water Use
Yes
Minimum Operating Temperature
-10 Degrees F
Inlet Connection
1/4 in Female NPT
Mounting Hole Diameter
0.17 in
Inlet Connection Gender
Female
Outlet Connection
1/8 in Female NPT
Manifold Material
Aluminum
Outlet Connection Gender
Female
Manifold Material Finish
Black Anodized
Outlet Spacing
3/4 in
Manifold Material Grade
6061
Resistance Properties
Corrosion Resistant, Wear Resistant
Manifold Shape
Rectangle
Temperature Range
-10 Degrees F - 200 Degrees F

Product Description

Black Anodized Aluminum

  • Max. pressure: 1000 psi Temp. range: -10° to 200°F Use with air, water, natural gas, hydraulic oils, and gasoline Metal and Plastic Manifolds Simple tube run design and layout reduces clutter, eases troubleshooting, and provides the basis for orderly tube runs. FNPT connections.
