CONTINENTAL

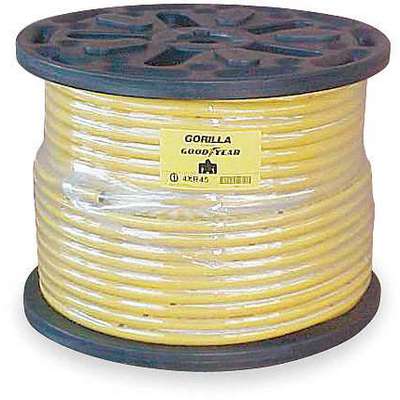

500 ft. Air Hose, Pneumatic Hose Max. Pressure: 500 psi, Yellow

Hover over image to magnify
Multipurpose Air Hose,Bulk,1/2
Multipurpose Air Hose,Bulk,1/2

#926544-6 | Pkg Qty: 1

$4,204.39 pkg | $4,204.39 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONTINENTAL
Maximum Pressure
500 psi
Color Family
Yellow
Mfr. Part Number
20026273
Coupled Assembly/Bulk
Bulk
Outside Diameter
0.906 in.
Cover Material
Carboxylated Nitrile Rubber
Package Quantity
1
Hose Length
500 ft.
Shipping Weight
125 lb.
Hose Media
Air, Mild Chemicals, Water
Subgroup | Pneumatic Hose
Multipurpose Air Hose
Inside Diameter
1/2 in.
Temperature Range
-20 deg. F to 190 deg. F
Item
Air Hose
Tube Material
Nitrile
General
For Media Type
Air, Calcium Chloride, Carbon Dioxide, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Heptane, Hexane, Isopropanol, Kerosene, Lubricated Air, Methanol, Naphtha, Nitrogen Gas, Parrafins (Wax), Sodium Bisulfate, Solvents, Stoddard Solvent, Turpentine, Water
Max. Working Pressure @ 70 F
500 psi
Hose Configuration
Bulk Hose
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Beverage, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, Ethyl Acetate, Formaldehyde, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Liquid Propane, LP Gas, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Natural Gas, Nitric Acid (50% Solution), Oxygen, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Steam, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Xylene
Hose Cover Material
Carboxylated Nitrile Rubber
Safety Factor
4:1
Hose Tube Material
Nitrile
Standards
RMA Class A , USMSHA No. 2G-14C/14

Product Description

These bulk air hoses have a nitrile tube that resists damage when exposed to oils, solvents, and aromatics. They also have a carboxylated nitrile cover that provides excellent resistance to weather, oils, and abrasion and moderate resistance to chemicals. The hoses do not conduct electricity and are used for carrying compressed air to pneumatic tools and equipment in a wide range of factory, construction, agricultural, quarry, mining, railroad, oil and gas, and shipbuilding applications.

Bulk air hoses are used to create custom hose assemblies for carrying compressed air to pneumatic tools and equipment. They can be cut to the desired length and compatible hose fittings can be added on the ends of the hoses to connect them to tools and equipment. These flexible air hoses accept fittings that are installed with crimps, ferrules, or clamps. The hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use. Air hoses are also sometimes known as pneumatic hoses or air compressor hoses.
