HUBBELL WIRING DEVICE-KELLEMS

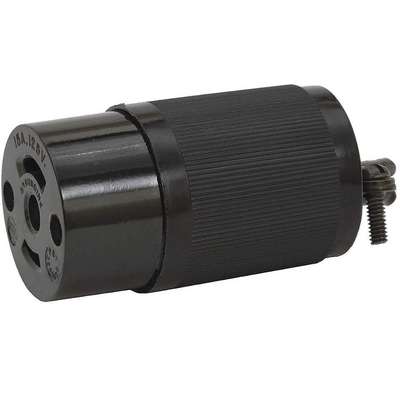

Hubbell Wiring Device-Kellems Midget Locking Connector, 120VAC Voltage, 15 Amps, NEMA Configuration: ML-2R, Number of Wires: 3
Hover over image to magnify
#926544 | Pkg Qty: 1
$37.48 pkg | $37.48 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Midget Locking
Yes
Amps
15 A
Minimum Operating Temperature
-40 °C
Body Material
Nylon
Minimum Wire Size
14 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
ML2-15
Cap Type
No Cap or Cover
NEMA Receptacle Configuration
ML2-15R
Color Family
Black
Number of Poles
2
Connection Orientation
Straight
Number of Wires
3
Contact Material
Brass
Outside Diameter
1.172 in.
Cord Size
0.281 in to 0.421 in
Overall Length
1.17 in.
Current Rating
15 A
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Shipping Weight
.05 lb.
Grounding
Grounded
Shrouded
No
Horsepower
2 hp
Standards
CSA Certified C22.2 No. 42, UL 498
Housing Color
Black
Type
2 Pole 3 Wire
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
120V AC
Item
Midget Locking Connector
Voltage Rating
125V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Spring Clamp Terminals
Maximum Wire Size
12 AWG
Wiring Style
Standard
Mfr. Part Number
HBL7593
General
Horsepower Rating
2 hp
NEMA Configuration
ML2-15
Market
Industrial
Resistance Properties
Impact Resistant
Product Description
Locking Devices
- Midget Devices
- Nylon plugs and connector bodies resist impact and abuse. Weatherproof boots protect devices from moisture, dust, metal filings, etc. Angle devices are low profile for use in limited spaces. Valise devices have offset jaw cord grips to prevent strain on terminals. 2-wire valise devices have bundling clamp screw terminals; 3-wire valise devices have insulation displacement terminals. UL Listed and CSA Certified.
