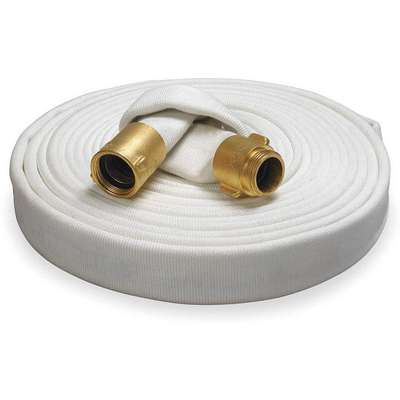

Reel Fire Hose: 1 1/2 in Hose Inside Dia., Rocker Coupling Lug, 250 psi, Brass x Brass, FNST x FNST

Hover over image to magnify
Reel Fire Hose,Dia. 1-1/2 In.,
Reel Fire Hose,Dia. 1-1/2 In.,

#926500-6 | Pkg Qty: 1

$348.20 pkg | $348.20 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Jacket Material
Polyester
Burst Pressure
450 psi
Length
100 ft.
Color Family
White
Lining Material
Rubber
Coupler Material
Brass
Mfr. Part Number
3ATP5
Coupling Bowl Size
1-1/2 in.
Package Quantity
1
Coupling Lug Style
Rocker
Shipping Weight
25.95 lb.
FM Approved
Yes
Test Pressure
300 psi
Hose Inside Diameter
1-1/2 in.
Thread
NST/NH
Hose Type
Single Jacket
Working Pressure
150 psi
Item
Reel Fire Hose
General
Compatible Chemicals
Fresh Water
Hose Fitting B Material
Brass
Coupling Material
Brass
Hose Fitting B Type
FNST
Fire Hose Type
Single Jacket
Hose Fittings
Brass 1-1/2 in FNST x Brass 1-1/2 in FNST
Fitting Type
FNST x FNST
Hose Inside Dia.
1 1/2 in
For Media Type
Water
Hose Tube Material
EPDM
Hose Configuration
Coupled Assembly
Standards
NFPA 1962
Hose Cover Material
Polyester
Temp. Range
-40° to 158°F
Hose Fitting A Material
Brass
Thread Size
1-1/2"
Hose Fitting A Type
MNST
Thread Type
NST/NH

Product Description

Single-jacket reel fire hoses are an economical alternative to double-jacket reel fire hoses. These hoses have a single-layer polyester jacket with a single-ply extruded EPDM (ethylene propylene diene monomer) lining.

Pin rack and reel fire hoses lay flat when not in use and can be folded and stored on a pin rack or reel to keep them out of the way when they're not needed. These hoses are commonly installed in buildings to provide the buildings' occupants with fire hoses for initial fire response in an emergency. The hoses' simple design makes them ideal for users who may not be familiar with using fire hoses. They are designed to be used once and then discarded. The hoses have fittings on both ends for connecting to equipment and nozzles.
