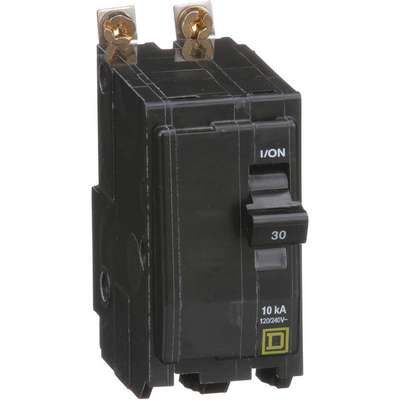

Square D Bolt On Circuit Breaker, 30 Amps, Number of Poles: 2, 120/240VAC AC Voltage Rating

Name: Square D Bolt On Circuit Breaker, 30 Amps, Number of Poles: 2, 120/240VAC AC Voltage Rating
Brand: SQUARE D
SKU: 9264744
Price: 123.14 USD
Availability: InStock

Hover over image to magnify

#926474-4 | Pkg Qty: 1

$123.14 pkg | $123.14 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

AC Voltage Rating

120/240VAC

Item

Miniature Circuit Breaker

Air @ 120 VAC

10kA

Length

3 in.

Air @ 125 VDC

Not Rated

Maximum Air Rating

10kA at 120/240VAC

Air @ 240 VAC

10kA

Maximum DC Voltage

Air @ 277 VAC

Not Rated

Maximum Wire Size

8 AWG

Air @ 48 VDC

5kA

Mfr. Part Number

QOB230

Air @ 480 VAC

Not Rated

Minimum Wire Size

14 AWG

Air @ 600 VAC

Not Rated

Number of Poles

Air @ 65 VDC

Not Rated

Package Quantity

Amperage

30 A

Panelboard Mounting

Bolt-On

Amps

30 A

Phase

Single

Brand

SQUARE D

Phase Connection

Any

Circuit Breaker Type

Standard

Series

QOB

DC Voltage Rating

48VDC

Shipping Weight

.5 lb.

Depth

2.91 in.

Terminal Connection

Pressure Plate

For Use With

Square D NQOD Panelboards

Type

Panelboard Mount

Frame Size

100A/QO

Voltage

120 - 240VAC

High Amp Trip Setting

40.5 A

Width

1-1/2 in.

Instantaneous Trip

Fixed

General

Circuit Breaker Actuator

Paddle

Min. Operating Temp.

104°F

Circuit Breaker Mounting Style

Bolt On

Standards

CSA Certified

Compatible Panelboard/Load Center Series

Product Description

These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
