HONEYWELL

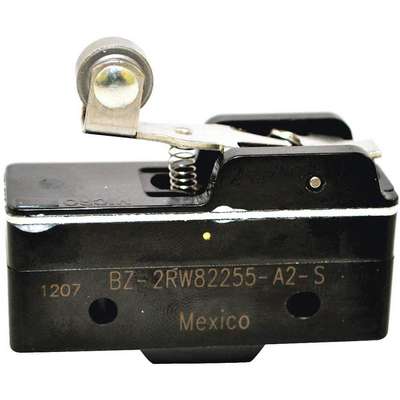

Honeywell 15A @ 240 V Lever, Roller, Short Industrial Snap Action Switch; Series BZ
Hover over image to magnify
#926434-9 | Pkg Qty: 1
$63.20 pkg | $63.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 240 V
Lever Actuator Length
1.05 in.
Actuator Length
1.05 in.
Maximum Pretravel
0.078 in.
Actuator Type
Lever, Roller, Short
Mfr. Part Number
BZ-2RW82255-A2-S
Amperage
15 A
Mounting Dimension
1.00 in. Centers
Basic Actuator Type
Lever
Number of Circuits
1
Brand
HONEYWELL
Operating Force
6 oz.
Contact Form
SPDT
Operating Temperature Range
-6 deg. F to 185 deg. F
Contact Type
SPDT
Over Travel
0.094 in.
Current Rating
15A
Package Quantity
1
DC Contact Rating
15 A @ 240 V
Release Force
1.50 oz.
Depth
0.7 in.
Series
Bz
Differential Travel
0.003 to 0.020 in.
Shipping Weight
.05 lb.
Electrical Connection
Screw
Snap Action Switch Type
Industrial Snap Action Switch
Height
1 in.
Type of Actuator
Short Roller Lever
Housing Material
General Purpose Phenolic
Voltage
250 VAC
Item
Industrial Snap Action Switch
Voltage Rating
250 VAC
Length
2 in.
Width
2 in.
General
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Height - Snap Action Switch
1 in
Actuator Type - Snap Action Switch
Lever, Roller, Short
Lever Actuator Length - Snap Action Switch
1.05 in
Basic Actuator Type - Snap Action Switch
Lever
Mounting Dimension - Snap Action Switch
1.00 in Centers
Contact Form- Switches
SPDT
Number of Circuits - Snap Action Switch
1
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Operating Temp. Range
-67° to 185°F
Depth - Snap Action Switch
0.7 in
Standards
UL, CSA, ENEC
Electrical Connection - Snap Action Switch
Screw
Width - Snap Action Switch
2 in
Product Description
This large basic snap switch is designed for use in irrigation systems, semi-trailer trucks, timing devices, office equipment, test instruments, medical and dental equipment, HVAC equipment, manually operated devices, and valves. It features a short roller lever actuator.
Expertly Selected Product Pairings
Documents
Item Barcode
Lg Basic Swch,15A,Spdt,Shrt
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 24A077 | Lg Basic Swch,15A, |
 | UNSPSC CODES | 39122209 | |
 | VMRS (ATA) CODES | 053-006-009 | Lg Basic Swch,15A, |
