AIR HANDLER

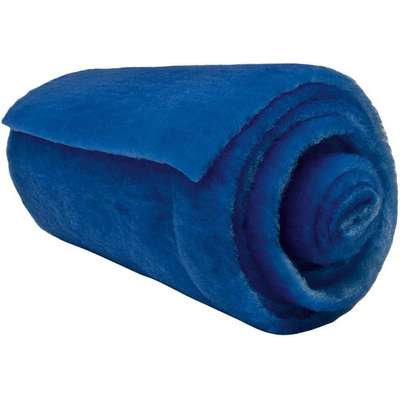

Air Handler Air Filter Roll: 10 in Nominal H, 90 ft. Nominal W, MERV 7, Polyester, Blue/White

Hover over image to magnify
Filter Media Roll,90 Ft.
Filter Media Roll,90 Ft.

#926368-3 | Pkg Qty: 1

$55.71 pkg | $55.71 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Actual Length
90 ft.
Maximum Temperature
180 deg. F
Actual Thickness
3/4 in.
Maximum Velocity
625 fpm
Actual Width
10 in.
Mfr. Part Number
2GGF4
Brand
AIR HANDLER
Nominal Length
90 ft.
Color Family
Blue / White
Nominal Thickness
1 in.
Filter Efficiency
60%
Nominal Width
10 in.
Filters Out
MERV 5-8 Mold, Spores, Dust Mites, Cat & Dog Dander, Hair Spray, Fabric Protector, Dusting Aids, Cement Dust, Pudding Mix
Package Quantity
1
Frame Included
No
Recommended Final Resistance
0.5 in. WC
Item
Air Filter Roll
Removes Particles Down To
3.0 to 10.0 microns
MERV
7
Shipping Weight
9.2 lb.
Material
Polyester
Surface Tackifier
No
General
Actual Filter Size
10 in x 90 ft x 3/4 in
Media Material
Polyester
Common Applications
General Use
Nominal Filter Size
10 in x 90 ft x 1 in
Filter Efficiency - Air Filters
0.6
Performance Rating
MERV 7
Initial Resistance @ 300 fpm
0.19 in wc
Standards
UL 900
Initial Resistance @ 500 fpm
0.32 in wc
Style - Air Filters
Roll

Product Description

General use air filter rolls capture airborne contaminants to protect HVAC systems from damage. They consist of a long length of filter media that can be cut to size. These rolls are most commonly used as pre-filters to capture large particles before they reach the final filters downstream, which extends the life of the more expensive final filters. Ideal for use in HVAC systems in commercial buildings, schools, and universities.

Air filter rolls consist of a long length of non-pleated air filter media. The filter media is typically installed in a compatible frame to create an air filter for removing contaminants from the air stream in HVAC systems or paint booth equipment. This avoids the build up of contaminants in the equipment, which can lead to damage, and it increases the quality of the air. Air filter media rolls are commonly used to replace dirty air filter media in HVAC systems and paint booths.
