TE-CO

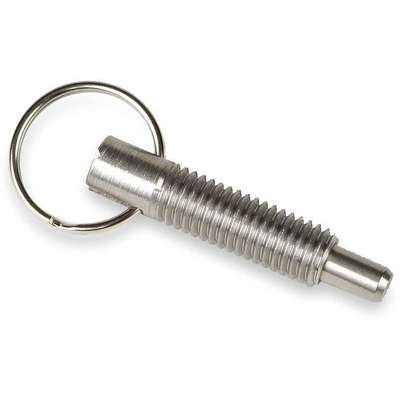

Spring Plunger, Thread Size 1/2"-13, Thread Length 1.4000", Plunger Projection 1/2", Steel
Hover over image to magnify
#926365-6 | Pkg Qty: 2
$54.22 pkg | $27.11 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body
Zinc Plated Clear Chromate
Mfr. Part Number
54416
Body Finish
Zinc
Mounting Type
Threaded
Body Length
1.4 in.
Overall Length
2 in.
Body Material
Steel
Package Quantity
2
Brand
TE-CO
Plunger
Case Hardened Steel, Zinc Plate
Finish
Zinc Plated Clear Chromate
Product Type
Spring Plunger
Force
2.50 Initial, 5.00 Final
Shipping Weight
.18 lb.
Function
Plunger Can Be Completely Withdrawn Into Body And Locked Into Retracted Position
Thread
Fully Threaded
Handle Type
Pull Ring
Thread Length
1.4 in.
Item
Spring Plunger
Thread Size
1/2"-13
Locking
Yes
Type
Hand Retractable
Material
Steel
General
Body Dia.
1/2 in
Plunger Material
Steel
Final Nose Force
5 lb
Plunger Projection
1/2 in
Initial Nose Force
2.5 lb
Retractable
Yes
Nose Shape
Chamfered
Ring Dia.
1.2600 in
Plunger Dia.
0.3120 in
Thread-Locking Element Included
Yes
Plunger Finish
Zinc
With Locking Plunger
Yes
Product Description
Hand-Retractable Plungers
- Sold in pkg. of 2
- Cylindrical nose with tapered end and chamfered plunger. For fastening, positioning, and latching applications. Can be fully retracted by pulling handle or ring. Locking plungers can be locked into a retracted position, while employing the optional locking element actually locks the threads of the plunger into a tapered hole. Steel plungers have zinc-plated clear chromate finish.
Item Barcode
Plunger,Hand,Steel,Zinc,1/2-13,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2YLT9 | Plunger,Hand, Steel,Zinc,1/ |
 | UNSPSC CODES | 31161721 | |
 | VMRS (ATA) CODES | 053-006-009 | Plunger,Hand, Steel,Zinc,1/ |
