DAYTON

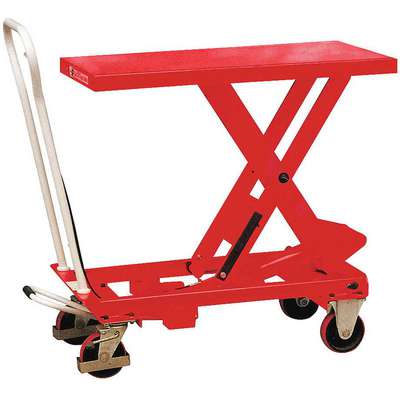

Mobile Manual Lift, Manual Push Scissor Lift Table, 1100 lb. Load Capacity, Lifting Height Max. 39-1

Hover over image to magnify
Scissor Lift Cart,1100 Lb.,
Scissor Lift Cart,1100 Lb.,

#926332-3 | Pkg Qty: 1

$829.09 pkg | $829.09 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Load Capacity
1100 lb.
Caster Diameter
6 in.
Lowered Height
17''
Caster Material
Polyurethane
Mfr. Part Number
33W286
Caster Type
(2) Rigid, (2) Swivel with Brake
Mobile/Stationary
Mobile
Caster Wheel Diameter
6 in.
Overall Height
39-1/2 in.
Caster Wheel Type
(2) Rigid, (2) Swivel with Brake
Overall Length
50 in.
Frame Material
Steel
Overall Width
20-1/2 in.
Item
Scissor Lift Table
Package Quantity
1
Lift Control
Foot Pump
Phase
1
Lift Mechanism
Hydraulic
Platform Style
Fixed
Lift Mobility
Manual Lift, Manual Push
Platform Width
20-1/2 in.
Lift Table Item
Scissor Lift Table
Powered By
Hydraulic
Lift Table Platform Style
Fixed
Raised Height
39-1/2 in.
Lifting Height Maximum
39-1/2 in.
Shipping Weight
264 lb.
Lifting Height Minimum
17 in.
Type
Manual
General
Brake Type
Side Thumbscrew Brake
Lifting Height per Pump
1/8 in
Caster Dia.
6 in
Overall LxWxH
50 in x 20 1/2 in x 39 1/2 in
Caster Wheel Dia.
6 in
Platform Gauge
10 ga
Elevation per Stroke
1/2"
Platform LxW
39 1/2 in x 20 1/2 in
Foot Pump
Single Speed
Platform Type
Solid
Includes
Hydraulic Foot Pump
Scissor Type
Single
Lifting Height Max.
39 1/2 in
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height Min.
17 in
Wheel/Tread Material
Polyurethane

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.
