REDHAT

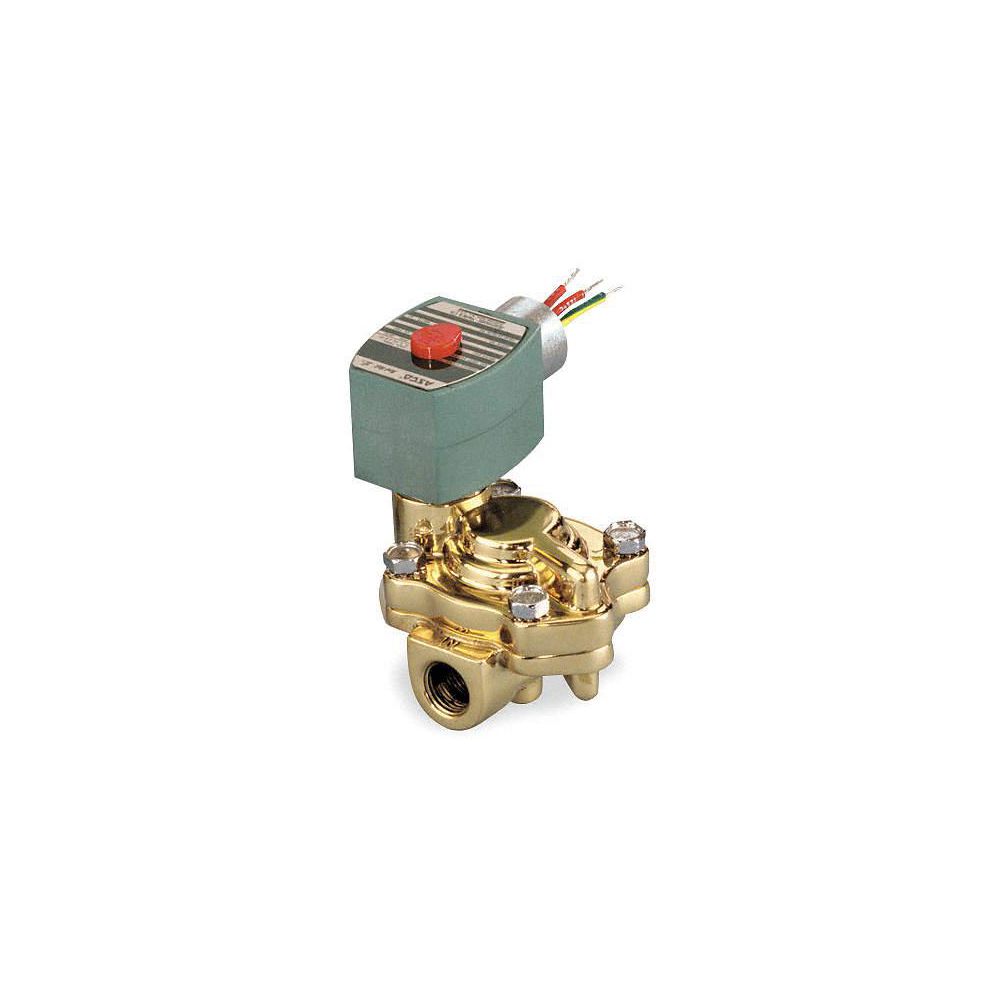

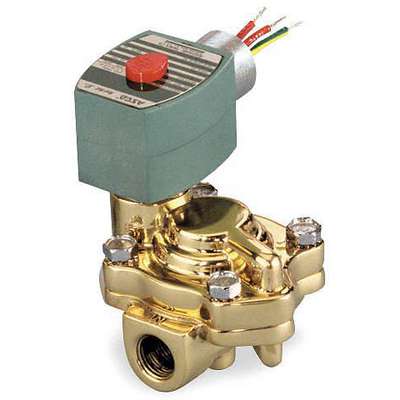

Slow Closing Solenoid Valve: 2 in Pipe Size - Valves, 120V AC, 5 psi Min. Op Pressure Differential
Hover over image to magnify
#926314-6 | Pkg Qty: 1
$1,527.78 pkg | $1,527.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
NEMA Rating
1, 2, 3, 3S, 4, 4X
Brand
REDHAT
Overall Height
7-3/8 in.
Coefficient of Volume
36
Overall Length
5-1/16 in.
Configuration
Normally Closed
Overall Width
4-3/4 in.
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Package Quantity
1
Hz
50/60
Pipe Size
2 in.
Item
Slow Closing Solenoid Valve
Shipping Weight
11.5 lb.
Maximum Fluid Temperature
180°F
Valve Design
2-Way/2-Position
Media Type
Water
Voltage
120 VAC
Mfr. Part Number
8221G013
orifice Dia._spec_s
1-3/4 in.
General
Application
To Protect Against the Water Hammer Problems Experienced in Many Water and Light Oil Applications
Media - Valves
Water
Body Material - Valves
Brass
Min. Operating Pressure Differential
5 psi
Center Line Pipe Center Size
4 5/8 in
Pipe Size - Valves
2 in
Coil Enclosure
Watertight No Junction Box
Seal Material - Valves
NBR
Coil Insulation Class
F
Solenoid Valve Product Group
Slow Closing Solenoid Valve
Environmental Rating - Valves
Indoor, Outdoor
Valve Configuration
Normally Closed
Max. Operating Pressure Differential Water
150 psi
Valve Ways and Positions
2-Way/2-Position
Product Description
This slow-closing solenoid valve is designed to help reduce pressure spikes and bring water hammers to a level that eliminates the need for suppressors or other controls. Coil included.
Expertly Selected Product Pairings
Item Barcode
Slow Closing Solenoid Valve,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3UL41 | Slow Closing Solenoid |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-006-009 | Slow Closing Solenoid |
