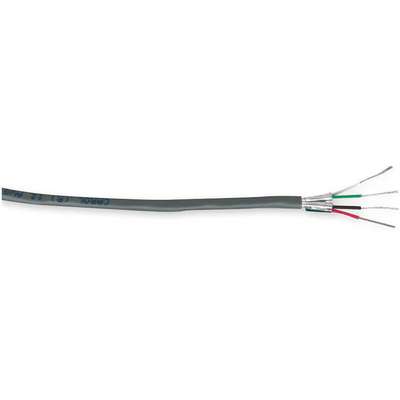

Carol Shielded Communication Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 4 (0 Pair)
Hover over image to magnify
#926310-9 | Pkg Qty: 1
$1,043.91 pkg | $1,043.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CAROL
Package Quantity
1
Capacitance
47
Package Type
Reel in a Box
Color Family
Gray
Shielded
Yes
Communication Cable Application
Audio Systems, Broadcast Systems, Instrumentation Systems
Shielded/Unshielded
Shielded
Conductor Color Code Table Number
6
Shielding
100% Flexfoil Shield
Conductor Size
18 AWG
Shielding Material
Foil
Conductor Type
Stranded
Shipping Weight
41.6 lb.
Insulation
Premium Grade, Color Coded S-R PVC
Solid / Stranded
Stranded
Insulation Material
Premium Grade, Color Coded S-R PVC
Spool Length
1000 ft.
Item
Communication Cable
Spool/Coil Length
1000 ft.
Jacket Color
Gray
Stranding
19/30
Jacket Color Family
Gray
Sub-Category
Multi-Conductor
Jacket Material
PVC
Suggested Voltage Rating
300V
Length
1000 ft.
Temperature Range
-4 deg. F to 176 deg. F
Mfr. Part Number
C2543A.41.10
Total Number of Conductors
4 (0 Pair)
NEC Article
800, CM
Voltage
300
NEC Article/Type
800 CM
Wire Size
18 AWG
Nominal Outside Diameter
0.238 in.
Wire/Cable Jacket Material
PVC
Number of Conductors
4
Wire/Cable Size
18 AWG
General
Application
Audio, Broadcast, Instrumentation, Sound Systems, Suggested Voltage Rating 300 volts
Shielded / Unshielded
Shielded
Application - Communication Cable
Audio Systems, Broadcast Systems, Instrumentation Systems
Shielding Type
100% Flexfoil Shield
Cable Sub-Category
Multi-Conductor
Standards
UL Style 2464, CM(UL) C(UL) CSA CMG
Conductor Size - Data Cable
18 AWG
Suggested Voltage Rating - Data Cable
300 V
Fire Rating - Data Cable
Commercial
Total Number of Conductors - Data Cable
4 (0 Pair)
Jacket Material - Wire and Cable
PVC
Vertical Tray Flame Test
UL 70,000 BTU
NEC Article and Type
800 CM
Wire Size - Wire and Cable
18 AWG
Package Type - Data Cable
Reel in a Box
Product Description
This multi-conductor 18 AWG communication cable is suitable for wiring fire and security alarms in homes, offices, or other buildings.
