HUBBELL WIRING DEVICE-KELLEMS

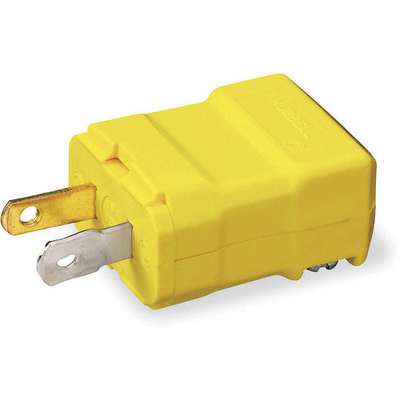

Hubbell Wiring Device-Kellems 15A General Grade Straight Blade Plug, Yellow; NEMA Configuration: 1-15P
Hover over image to magnify
#926308 | Pkg Qty: 1
$20.36 pkg | $20.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
15 A
Maximum Wire Size
14 AWG
Antimicrobial
No
Mfr. Part Number
HBL5866VY
Body Length
1.68 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Yellow
NEMA Configuration - Plugs & Connectors
1-15
Connection Orientation
Straight
Number of Blades
2
Cord Size
0.218 in. to 0.385 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
2
Current Rating
15 A
Package Quantity
1
Description
Valise, Polarized, Non Grounding
Phase
Single
Grade
General
Polarized
Yes
Grounding
Non-Grounded
Shipping Weight
.08 lb.
Horsepower
1/2 hp
Standards
CSA Certified C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Housing Color
Yellow
Sub-Category
Plugs
Housing Material
Nylon
Type
Valise, Polarized
IP Rating
IP20
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Voltage
125V AC
Item
Straight Blade Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Hinged
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
15 A
NEMA Plug Configuration - Plugs and Receptacles
1-15P
Grade - Plugs and Receptacles
General
Phase - Plugs and Receptacles
1
HP
0.5
Voltage - Plugs and Receptacles
125V AC
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Valise®
- 1-pc. nylon construction with load-bearing locking lugs and 2 assembly screws provide a quick, secure assembly. Large, easy-to-wire terminal clamps feature a bundling effect on conductors. Powerful offset cord grip resists conductor slippage and prevents strain on terminations.
Expertly Selected Product Pairings
Item Barcode
Plug,1-15P,15A,125V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1X997 | Plug,1-15P, 15A,125V |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,1-15P, 15A,125V |
