PANASONIC

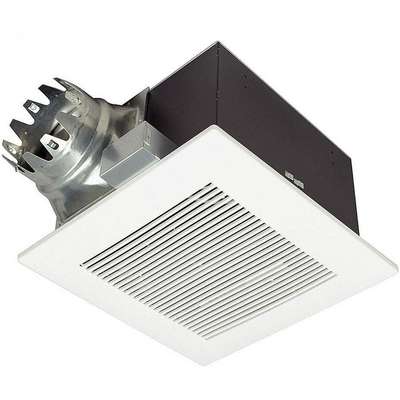

Panasonic 14-51/64" x 9-27/32" x 14-51/64" Bathroom Fan, 380 CFM, 0.99 Amps

Hover over image to magnify
Bathroom Fan,380 Cfm,0.99A
Bathroom Fan,380 Cfm,0.99A

#926296-1 | Pkg Qty: 1

$440.29 pkg | $440.29 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
PANASONIC
Mounting Location
Ceiling
Duct Diameter
6 in.
Mounting Location
Ceiling
Housing Material
Galvanized Steel
Package Quantity
1
Housing Width
9-27/32 in.
Shipping Weight
27.6 lb.
Item
Bathroom Fan
Voltage
120 VAC
Mfr. Part Number
FV-40VQ4
General
Blower Wheel Curve
Forward
Heater
Without Heater
Discharge Direction
Horizontal
Includes Grill
Yes
Duct Dia.
6 in
Lighted
Without Light
Duct Shape
Round
Maximum Noise Level
3 sones
Exhaust Airflow @ 0.100 in SP
390 cfm
Motor Speed
793 RPM, 874 RPM
Exhaust Airflow @ 0.250 in SP
356 cfm
Nameplate Voltage
120V AC
For Cut-Out Length
14 3/4 in
Noise Level @ 0.100 in SP @ 5 ft
3 sones
For Cut-Out Width
14 3/4 in
Noise Level @ 0.250 in SP @ 5 ft
3 sones
Full Load Current
0.99 A
Overall HxWxD
9 1/4 in x 14 3/4 in x 14 3/4 in
Green Certification/Other Recognition
ENERGY STAR® Certified
Profile Height Family
Medium
Grille Length
17 1/2 in
Profile Width Family
Single-Wide
Grille Material
Polypropylene
Standards
cHVI Certified
Grille Width
17 1/2 in
Vent Design
Ducted

Product Description

With a single fan design, this PANASONIC bathroom fan features the Pick-A-Flow™ speed selector that allows you to choose your desired CFM. Together with SmartFlow™ technology, the Pick-A-Flow feature helps ensure optimum CFM performance. Model is powerful, quiet, and ideal for new construction or replacement applications. use over a tub/shower enclosure when used with a GFCI protected circuit. Can be used to comply with ASHRAE 62.2, LEED, IAP, California Title 24 and WA Ventilation Code.
