TECHLITE INSULATION

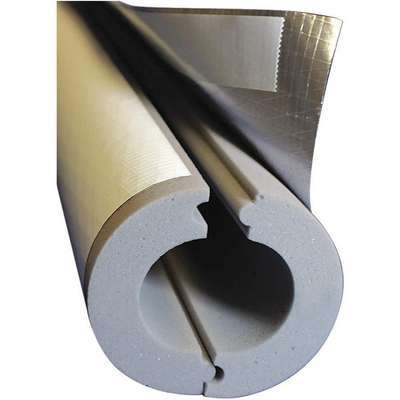

Techlite Insulation 1" Thick, Hinged with Self Sealing Lap Melamine Foam Pipe Insulation, 4 ft. Insulation Length

Hover over image to magnify
Pipe Ins.,Melamine,7/8 In. Id,
Pipe Ins.,Melamine,7/8 In. Id,

#926220-8 | Pkg Qty: 1

$63.74 pkg | $63.74 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
TECHLITE INSULATION
Length
4 ft.
Color Family
White
Material of Construction
Melamine Foam
Fits Pipe Sizes
1/2 in.
Mfr. Part Number
0179-0050IP100-PF-0910-01
Fits Tube Size
7/8 in.
Nominal Inside Diameter
7/8 in.
For Use On
Iron Pipe
Pack Quantity
1
Insulation Material
Melamine Foam
Shipping Weight
.25 lb.
Insulation Type
Hinged with Self Sealing Lap
Temperature Range (Deg. F)
-40 to 350 deg. F
Item
Pipe Insulation
Wall Thickness
1 in.
General
Approx. R Value
6.57
Insulation Nominal I.D.
7/8 in
Copper Tube Size (O.D. HVAC/R)
7/8"
Insulation Temp. Range
-40 °F to 350 °F
Includes
Factory Laminated ASJ (All Service Jacket) Paper/Foil/Scrim Vapor Barrier Jacket
Iron Pipe Nominal Size
1/2"
Insulation Approx. K Value
0.25
Standards
ASTM C1410 Cellular Melamine, ASTM E84 25/50 Rating
Insulation Approx. R Value
6.57
Type - Pipe Insulation
Hinged with Self Sealing Lap
Insulation Length
4 ft
Wall Thickness - Insulation
1 in

Product Description

Produced from ozone-friendly melamine foam this TECHLITE INSULATION pipe insulation is a fiber-free insulation system covered with a fiber-reinforced, paper-and-foil lamination. Excellent choice for use in interior applications. True foil barrier has very low vapor permeability while the outer cover is paintable or can be covered with a secondary jacket if used in outdoor applications. This preformed section is suitable for use on pipe or tubing.

Item Barcode
9262208
Pipe Ins.,Melamine,7/8 In. Id,
 NameItemDescription
Grainger DropshipGrainger Dropship4NNX4Pipe Ins., Melamine,7/8
UNSPSC CODESUNSPSC CODES30141505
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Pipe Ins., Melamine,7/8
