DAYTON

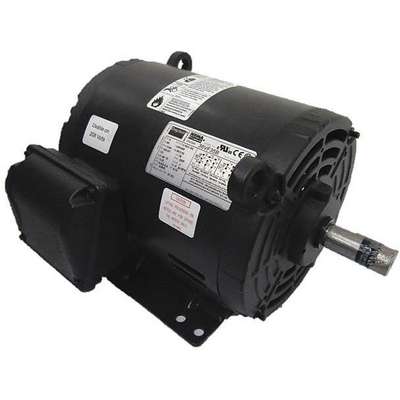

Dayton General Purpose Motor, 2 HP, 3-Phase, Nameplate RPM 1,165, Voltage 230/460V AC, 182/4T Frame

Hover over image to magnify
Gp Motor,Odp,2 Hp,1165 Rpm,1-1/
Gp Motor,Odp,2 Hp,1165 Rpm,1-1/

#926218-5 | Pkg Qty: 1

$493.40 pkg | $493.40 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearings
Ball
Mfr. Warranty Length
1 yr.
Brand
DAYTON
Motor Design
3-Phase
Duty
Continuous
Mounting
Base
Duty Cycle
Continuous
Nameplate RPM
1165
Footnotes
21556
Overall Length
14-3/4 in.
Frame
182/4T
Package Quantity
1
Full Load Amps
5.9/2.9
Phase
Three
Hz
60
Rotation
CW/CCW
Insulation Class
F
Service Factor
1.15
Item
General Purpose Motor
Shaft Length
2-3/4 in.
Length Less Shaft
12-1/16 in.
Shipping Weight
71 lb.
Mfr. Part Number
36VF35
Voltage
230/460 VAC
General
CC Number
CC029A
Motor Frame Material
Rolled Steel
Efficiency Group
NEMA Premium Efficient
Motor Mounting Position
Horizontal
Green Certification or Other Recognition
NEMA Premium® Rated
Motor Mounting Type
Rigid Base
Green Environmental
Product Contributes To Reducing Energy Consumption
Motor Service Factor
1.15
HP
2
Motor Shaft Design
Keyed
Includes
Conduit Box
Motor Shaft Rotation
CW/CCW
Ins. Class
F
No. of Speeds
1
Inverter Rated
Yes
Nominal Efficiency
87.5 %
Max. Ambient Temp.
40 °C
RPM Group
1101-1200
Motor Application
General Application
RPM Range
1,101-1,200
Motor Bearings
Ball
Shaft Dia.
1 1/8 in
Motor Efficiency Group
NEMA Premium Efficient
Standards
CE, CSA, UL
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

NEMA 180 frame three-phase general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 182TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted. The combined suffix "CH" indicates that the face-mounting dimensions differ from frames with a "C" letter designation. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
