TE-CO

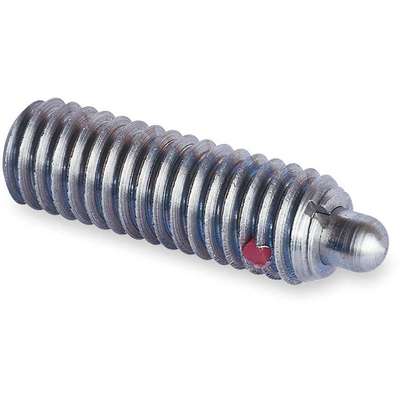

Spring Plunger, Thread Size 1/2"-13, Thread Length 1-1/4", Plunger Projection 1/4"
Hover over image to magnify
#926208-2 | Pkg Qty: 5
$56.85 pkg | $11.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Length
1-1/4 in.
Mounting Type
Threaded
Body Material
Stainless Steel
Overall Length
1-1/4 in.
Brand
TE-CO
Pack Quantity
5
Force
2.70 Initial, 9.30 Final
Plunger
303 Stainless Steel
Function
Used In Applications When Higher End Forces Are Needed, Often Used To Raise Or Eject Parts
Product Type
Spring Plunger
Handle Type
Hex Socket Drive
Shipping Weight
0.23 lb.
Item
Spring Plunger
Thread
Fully Threaded
Locking
Yes
Thread Length
1-1/4 in.
Material
303 Stainless Steel
Thread Size
1/2"-13
Mfr. Part Number
53309
Type
With Locking Element
General
Application
Often Used To Raise or Eject Parts
Plunger Material
Stainless Steel
Body Dia.
1/2 in
Plunger Projection
1/4 in
Final Nose Force
9.3 lb
Plunger Width
0.1880 in
Initial Nose Force
2.7 lb
Thread-Locking Element Included
Yes
Plunger Dia.
0.2480 in
Product Description
Spring Plungers
- Thread sizes up to 5/8-11 sold in pkg. of 5 Thread sizes 3/4-10 and up sold in pkg. of 2 Choose plungers either: with locking element or without locking element
- Apply controlled tension to workpieces. Can be used for positioning in fixtures or to eject parts from a punch press or forging die. Provide accurate spring end force with excellent wear resistance.
Item Barcode
Plunger,Spring,SS,1/2-13,1-1/4,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2YLF6 | Plunger, Spring,SS,1/ |
 | UNSPSC CODES | 31161721 | |
 | VMRS (ATA) CODES | 053-006-009 | Plunger, Spring,SS,1/ |
