PEABODY ENGINEERING

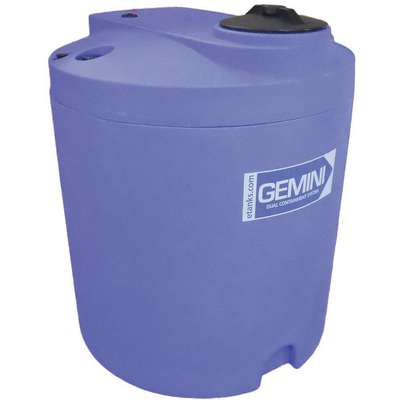

Storage Tank: Double Wall, Vertical, 90 gal, Closed Top, 1/4 in Wall Thick (in)

Hover over image to magnify
Tank,Vertical Double Wall,90
Tank,Vertical Double Wall,90

#926187-9 | Pkg Qty: 1

$1,711.20 pkg | $1,711.20 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
NSF 61
Mfr. Part Number
01-30296
Brand
PEABODY ENGINEERING
Mfr. Warranty Length
3 yr.
Connection
(2) 2 FNPT
Package Quantity
1
Construction Material
Linear Low Density Polyethylene
Shipping Weight
125 lb.
Diameter
34
Tank (Gal.)
90
Fill Opening Diameter
8
Tank (L)
341
Fitting Type
Polyethylene
Tank Bottom Diameter
34 in.
Item
Storage Tank
Tank Style
Vertical Double Wall
Maximum Temperature (Deg. F)
140°
Type
Closed Top
Maximum Working Pressure
Atmospheric
Wall Thickness
1/4
General
Fill Cap Diameter
10 in
Overall LxDia.
34 in
Liquid Storage Capacity
90 gal
Tank Material Thickness
1/4 in
Number of Caps
1
Tank Opening Type
Closed Top
Overall Dimensions
41 1/4 in H x 34 in Dia.
Tank Orientation
Vertical
Overall HxDia.
41 1/4 in x 34 in
Tank Wall Style
Double Wall

Product Description

Storage Tank, Closed Top, Vertical Double Wall, Tank (Gal.) 90, Dia.34 in, Height41 1/4 in, Tank Bottom Dia.34 in, Fill Opening Dia.8 in, Connection(2) 2 FNPT, Fitting Type Polyethylene, Wall Thickness1/4 in, Tank (L) 341, Max. Working Pressure (PSI) Atmospheric, Construction Material Linear Low Density Polyethylene, Max. Temp. (F) 140 Degrees F, Agency Compliance NSF 61, Manufacturers Warranty Length 3 yr

Item Barcode
9261879
Tank,Vertical Double Wall,90
 NameItemDescription
Grainger DropshipGrainger Dropship406T82Tank, Vertical
UNSPSC CODESUNSPSC CODES24111803
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Tank, Vertical
