PEABODY ENGINEERING

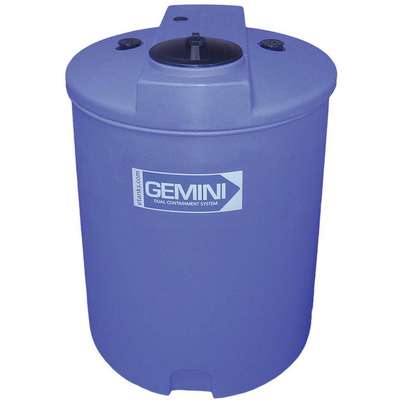

Storage Tank: Double Wall, Vertical, 120 gal, Closed Top, 1/4 in Wall Thick (in)

Hover over image to magnify
Tank,Vertical Double Wall,120
Tank,Vertical Double Wall,120

#926187-8 | Pkg Qty: 1

$1,918.00 pkg | $1,918.00 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
NSF 61
Mfr. Part Number
01-29777
Brand
PEABODY ENGINEERING
Mfr. Warranty Length
3 yr.
Connection
(2) 2 FNPT
Pack Quantity
1
Construction Material
Linear Low Density Polyethylene
Shipping Weight
178 lb.
Diameter
33
Tank (Gal.)
120
Fill Opening Diameter
8
Tank (L)
454
Fitting Type
Polyethylene
Tank Bottom Diameter
33 in.
Item
Storage Tank
Tank Style
Vertical Double Wall
Maximum Temperature (Deg. F)
140°
Type
Closed Top
Maximum Working Pressure
Atmospheric
Wall Thickness
1/4
General
Fill Cap Diameter
10 in
Overall LxDia.
33 in
Liquid Storage Capacity
120 gal
Tank Material Thickness
1/4 in
Number of Caps
1
Tank Opening Type
Closed Top
Overall Dimensions
47 in H x 33 in Dia.
Tank Orientation
Vertical
Overall HxDia.
47 in x 33 in
Tank Wall Style
Double Wall

Product Description

Storage Tank, Closed Top, Vertical Double Wall, Tank (Gal.) 120, Dia.33 in, Height47 in, Tank Bottom Dia.33 in, Fill Opening Dia.8 in, Connection(2) 2 FNPT, Fitting Type Polyethylene, Wall Thickness1/4 in, Tank (L) 454, Max. Working Pressure (PSI) Atmospheric, Construction Material Linear Low Density Polyethylene, Max. Temp. (F) 140 Degrees F, Agency Compliance NSF 61, Manufacturers Warranty Length 3 yr

Item Barcode
9261878
Tank,Vertical Double Wall,120
 NameItemDescription
Grainger DropshipGrainger Dropship406T83Tank, Vertical
UNSPSC CODESUNSPSC CODES24111803
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Tank, Vertical
