PEABODY ENGINEERING

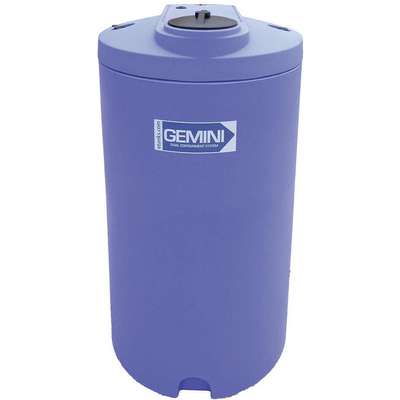

Storage Tank: Double Wall, Vertical, 160 gal, Closed Top, 3/8 in Wall Thick (in)

Hover over image to magnify
Tank,Vertical Double Wall,160
Tank,Vertical Double Wall,160

#926187-7 | Pkg Qty: 1

$2,524.59 pkg | $2,524.59 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
NSF 61
Mfr. Part Number
01-29940
Brand
PEABODY ENGINEERING
Mfr. Warranty Length
3 yr.
Connection
(2) 2 FNPT
Pack Quantity
1
Construction Material
Linear Low Density Polyethylene
Shipping Weight
210 lb.
Diameter
34
Tank (Gal.)
160
Fill Opening Diameter
8
Tank (L)
606
Fitting Type
Polyethylene
Tank Bottom Diameter
34 in.
Item
Storage Tank
Tank Style
Vertical Double Wall
Maximum Temperature (Deg. F)
140°
Type
Closed Top
Maximum Working Pressure
Atmospheric
Wall Thickness
3/8
General
Fill Cap Diameter
10 in
Overall LxDia.
34 in
Liquid Storage Capacity
160 gal
Tank Material Thickness
3/8 in
Number of Caps
1
Tank Opening Type
Closed Top
Overall Dimensions
68 in H x 34 in Dia.
Tank Orientation
Vertical
Overall HxDia.
68 in x 34 in
Tank Wall Style
Double Wall

Product Description

Storage Tank, Closed Top, Vertical Double Wall, Tank (Gal.) 160, Dia.34 in, Height68 in, Tank Bottom Dia.34 in, Fill Opening Dia.8 in, Connection(2) 2 FNPT, Fitting Type Polyethylene, Wall Thickness3/8 in, Tank (L) 606, Max. Working Pressure (PSI) Atmospheric, Construction Material Linear Low Density Polyethylene, Max. Temp. (F) 140 Degrees F, Agency Compliance NSF 61, Manufacturers Warranty Length 3 yr

Item Barcode
9261877
Tank,Vertical Double Wall,160
 NameItemDescription
Grainger DropshipGrainger Dropship406T84Tank, Vertical
UNSPSC CODESUNSPSC CODES24111803
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Tank, Vertical
