TRIPP LITE

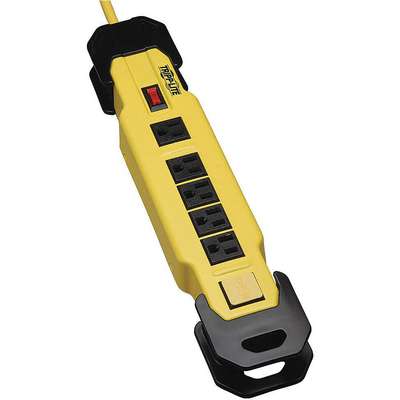

Tripp Lite Plug-In GFCI with Cord, 9 ft., Yellow/Black, 15.0, Plug Configuration NEMA 5-15P

Hover over image to magnify
Outlet Strip,15A,6 Outlet,9 Ft
Outlet Strip,15A,6 Outlet,9 Ft

#926167-6 | Pkg Qty: 1

$141.81 pkg | $141.81 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
15 A
NEC Cord Designation
SJT
Brand
TRIPP LITE
NEMA Plug Configuration
5-15P
Circuit Breaker
Yes
NEMA Receptacle
5-15R
Color Family
Black / Yellow
NEMA Receptacle Configuration
5-15R
Cord Length
9 ft.
Number of Conductors
3
Cord Type
14G / SJT
Number of Outlets
6
Description/Special Features
Transformer outlet, GFCI plug protects users from electrical shock in wet or humid environments, lighted on/off switch, rugged all metal housing, built-in cord wrap, OSHA color guidelines alerts users to hazardous situations
Number of Transformer Outlets
2
Enclosure Rating
Outdoor
Number of Wires
3
Footnotes
14
Outlet Configuration
6 Outlets
GFCI Protected
Yes
Outlet Surge Protection
No
Gauge/Conductor
14/3
Package Quantity
1
Grade
Industrial
Plug Configuration
NEMA 5-15P
Height
1-39/64 in.
Plug Style
Right Angle
Housing Material
Metal
Power Indicator
Yes
Hz
60
Range of Lengths
5 to 10 ft.
Item
Plug-In GFCI with Cord
Shipping Weight
3.29 lb.
Length
1.61 in.
Type
Industrial, Cord Wrap
Material of Construction
Metal
Voltage
120
Maximum Amps
15
Voltage Rating
120 VAC
Mfr. Part Number
TLM609GF
Width
3-5/64 in.
Mounting Style
Keyhole
Wire Size
14 AWG
Mounting Type
Keyhole
General
For Use With
Industrial, Automotive, Factory and Hardware Environments
Receptacle Configuration
NEMA 5-15R
Includes
Four Safety Covers, Owner's Manual
Switch/Pilot Light
Yes
Outlet Count
6 Outlets
Trade Designation
SJT

Product Description

Plug-in portable GFCI cords with automatic reset are electrical devices used between a power source and an electrical device to detect ground faults and help prevent electrical shock. The GFCI automatically resets after a power interruption to immediately restart the connected devices as soon as the power supply is restored. They are often used to connect unattended devices with short power cords, such as radios or lights, to outlets without GFCI protection. These portable cords plug directly into a wall outlet and have a short cord with one or more receptacles at the end that devices plug into.

General purpose portable ground fault circuit interrupter (GFCI) bodies and cords are electrical devices used with power cords that help protect users from ground faults. They have an integrated circuit breaker that turns off the power when a current overload is detected, helping protect users from electrical burns, shock, or electrocution. They are commonly used in temporary power applications to provide protection where electrical circuits may come in contact with water, such as in garages or outdoors, and a standard GFCI receptacle is not available. Plug-in GFCIs plug directly into a wall outlet and have one or more receptacles that devices plug into. Inline GFCIs are lengths of cord with an outlet plug at one end and one more receptacles at the other end that devices plug into.
