RACO

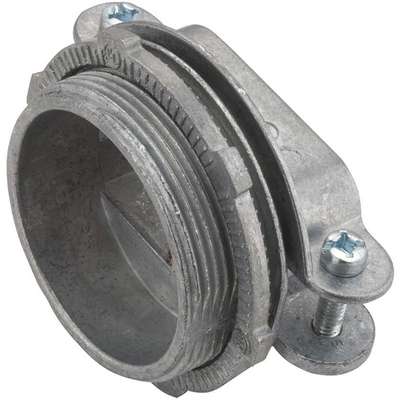

Raco Straight Nonmetallic Sheath Cable Connector, Die Cast Zinc, 1-1/4" MNPT Box Connection
Hover over image to magnify
#926167 | Pkg Qty: 1
$5.57 pkg | $5.57 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Box Connection
1-1/4 in. MNPT
Mfr. Part Number
2855
Brand
RACO
Overall Height
1-5/8 in.
Conduit Size
1-1/4 in.
Overall Length
1-5/16 in.
Connection Type
Clamp
Overall Width
2-1/4 in.
Connector Style
Straight
Pack Quantity
1
Insulated
No
Shipping Weight
.26 lb.
Item
UF Cable Connector
Sub-Category
Connector
Knockout Size
1-1/4 in.
Thread Type
NPSM
Material
Die Cast Zinc
Trade Size
1-1/4 in.
General
Cable Clamping Method
Clamp Style
Includes
Clamp
Conduit Sub-Category
Connector
Material - Cable Connector
Die Cast Zinc
For Maximum Cable OD
6.54 mm
Standards
E195971, UL 514B, File E195972
For Minimum Cable OD
4.11 mm
Style - Connector
Straight
For Use With
Underground Feeder Cable
Use With - Nonmetallic Building Cable
(1) 10/2, (1) 12/2, (1) 12/3 with Ground; (1) 14/2, (1) 12/3 without Ground, (1) 14/3, Oval Cable: (1) 14/2
Product Description
Nonmetallic Sheath Cable Connector, Style - Connector Straight, Material - Cable Connector Die Cast Zinc, Box Connection 1-1/4 in MNPT, Cable Clamping Method 2 Screws, Insulated No, Use With - Nonmetallic Building Cable (1) 10/2, (1) 12/2, (1) 12/3 with Ground; (1) 14/2, (1) 12/3 without Ground, (1) 14/3, Oval Cable: (1) 14/2, Standards E195971
Item Barcode
Uf Cable Connector,1-1/4"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 52AX67 | UF Cable Connector,1- |
 | UNSPSC CODES | 39121311 | |
 | VMRS (ATA) CODES | 053-006-009 | UF Cable Connector,1- |
