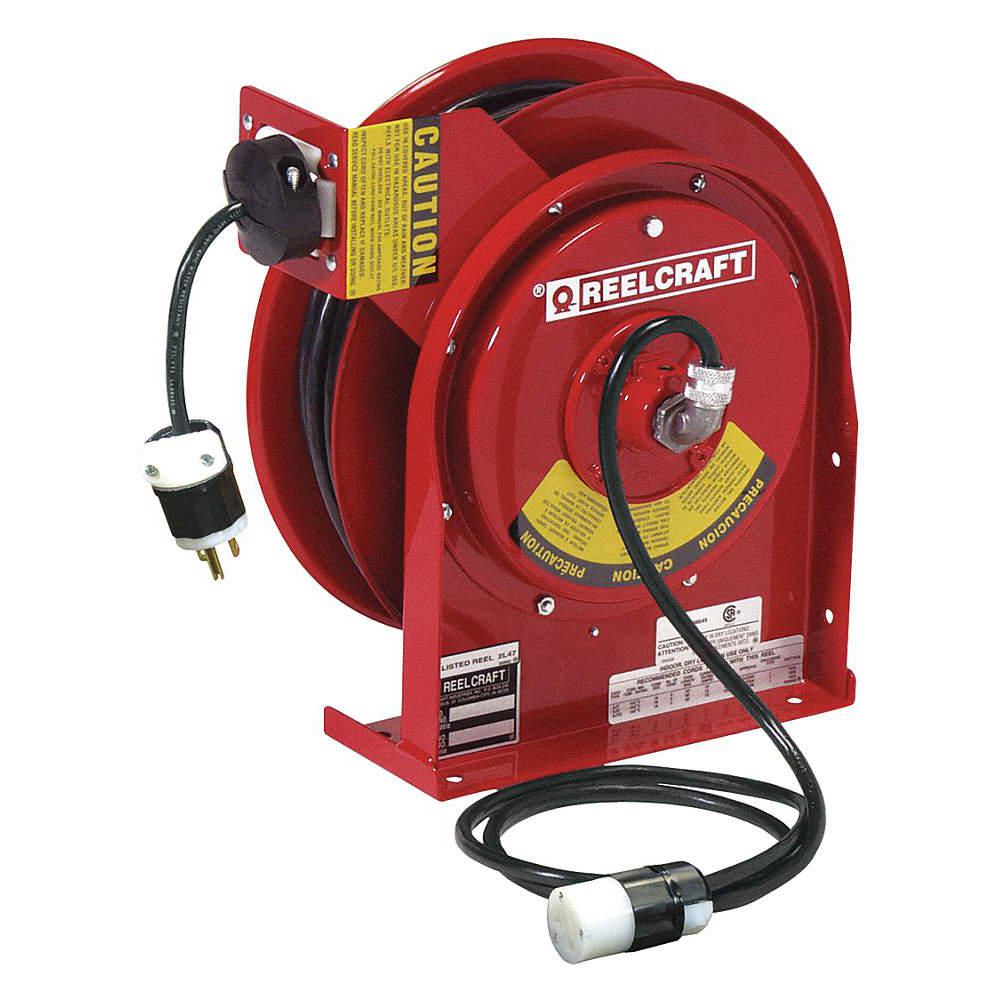

Reelcraft 45 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Red Reel Color

Hover over image to magnify
Retractable Cord Reel,45 Ft.,
PI_Asset_1027967
Retractable Cord Reel,45 Ft.,
PI_Asset_1027967
Reelcraft 45 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Red Reel Color Video
Double tap image to magnify
Retractable Cord Reel,45 Ft.,
Retractable Cord Reel,45 Ft.,
RoOYEWTcFQA

#926135-4Pkg Qty: 1

$859.16 pkg | $859.16 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
REELCRAFT
NEC Cord Designation
SJEOOW
Cord Color
Black

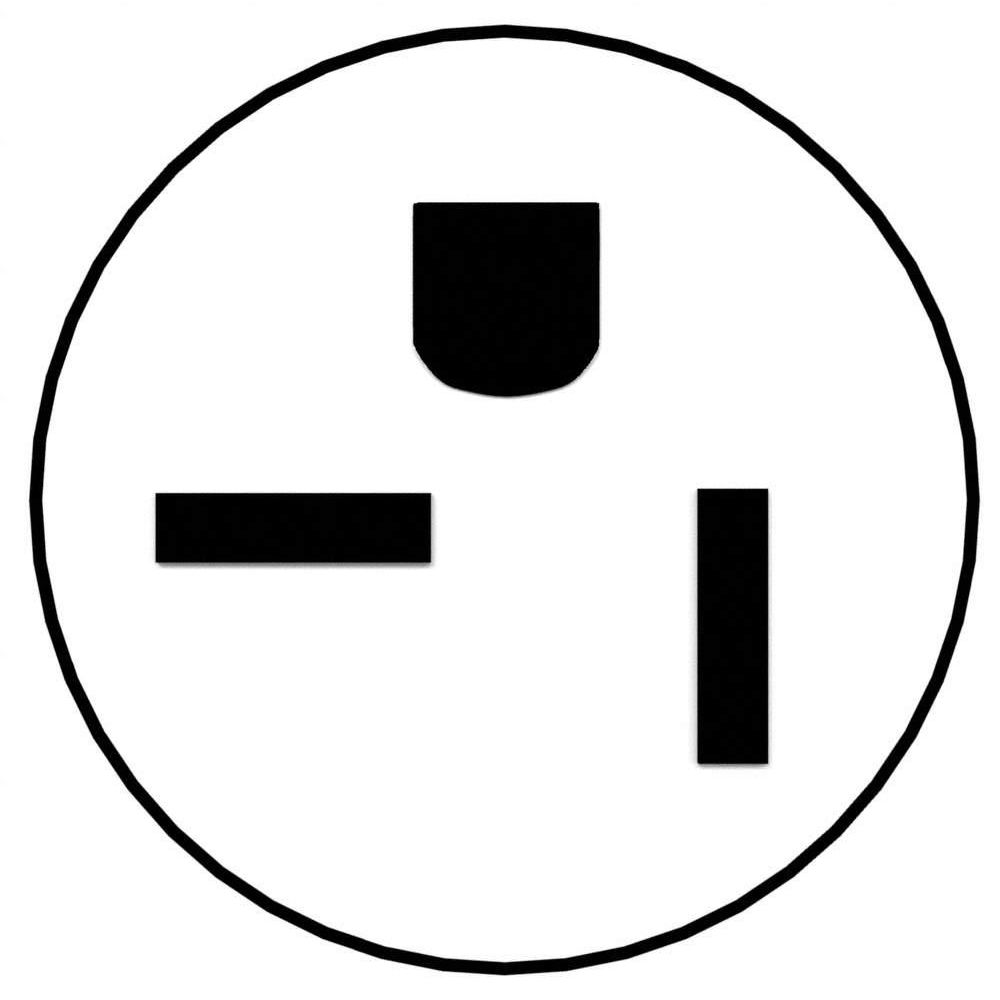

NEMA Configuration
5-20P
Cord Ending
5-20P
NEMA Plug Configuration
5-20P
Cord Ending NEMA Configuration
5-20P
Number of Conductors
3
Cord Included
Yes
Number of Outlets
1
Cord Length
45 ft.
Overall Depth
9-3/8 in.
Depth
9-3/8 in.
Overall Height
13-1/4 in.
Enclosed Reel
No
Overall Width
12-5/8 in.
Enclosure Rating
Not Rated
Package Quantity
1
Feeder Cord Ending
Grounding Connector
Reel Color
Red
Feeder Cord Ending NEMA Configuration
5-20R
Reel Material
Steel
Grade
Heavy Industrial
Reel Mounting
Bench, Ceiling, Wall
Height
13-1/4 in.
Shipping Weight
27 lb.
Holds
45 ft. of 12/3
Slip Ring Rating
20A @ 600 V
Indoor/Outdoor
Indoor
Voltage
120 VAC
Item
Retractable Cord Reel
Width
12-5/8 in.
Maximum Amps
20
Wire Size
12 AWG
Mfr. Part Number
L 4545 123 3A-RP
General
Feeder Cord Ending Configuration
NEMA 5-20R
Retractable Cord Ending Configuration
NEMA 5-20P
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Standards
UL, CSA
Includes
Cam Lock
Tension Method
Ratchet Lock
Includes Cord
Yes
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
20.0
Winding Method
Spring Retraction
Retractable Cord Ending
Grounding Plug

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
