ZOELLER

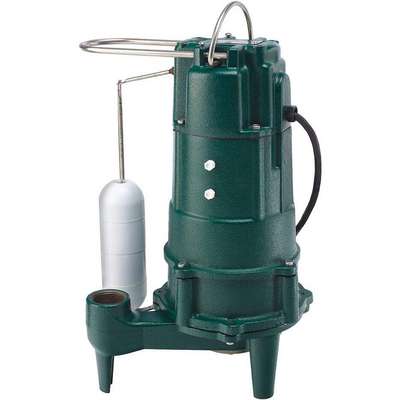

1/2 HP Grinder Pump, CSCR Motor, 35 ft. Max Head, Carbon, Ceramic Shaft Seal
Hover over image to magnify
#926102-9 | Pkg Qty: 1
$1,205.18 pkg | $1,205.18 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
Maximum Temperature (Deg. F)
130
Amps
7.0 A
Mfr. Part Number
803-0013
Base Material
Cast Iron
Mfr. Warranty Length
3 yr.
Bearing Type
Ball
Minimum Sump Pit Diameter
18 in.
Brand
ZOELLER
Motor RPM
3450
Cord Length
15 ft.
Motor Type
CSCR
Discharge NPT
1-1/4 in. F
Off Point
5-3/4 in.
Duty
Intermittent
On Point
13
GPM of Water @ 10 Ft. of Head
31
Package Quantity
1
GPM of Water @ 20 Ft. of Head
22
Phase
1
GPM of Water @ 25 Ft. of Head
16
Pump Body Material
Cast Iron
GPM of Water @ 30 Ft. of Head
9
Pump HP
1/2
GPM of Water @ 5 Ft. of Head
35
Pump RPM
3400
Handle
Yes
RPM
3400
Height
17-1/4 in.
Shaft Material
1215 Cold Steel
Horsepower
1/2
Shaft Seal
Carbon/Ceramic
Housing Material
Cast Iron
Shaft Seal Material
Carbon, Ceramic
Hz
60Hz
Shipping Weight
78.5 lb.
Impeller Material
Engineered Plastic
Switch Type
Vertical Float
Input Phase AC
1
Thermal Protection
Yes
Item
Grinder Pump
Type
Bimetal TPS
Maximum Diameter Solids
10-29/32 in.
Voltage
120 VAC
Maximum Head
35 ft.
Warranty
Three Year/36 Month
Maximum Liquid Temperature
130°
Width
10-29/32 in.
General
Body Dia.
11 11/32 in
Min. Sump Pit Dia.
18 in
Discharge Dia.
1 1/4 in
Phase - Pumps
1
Discharge Gender
Female
Rated Voltage
115V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 10 Ft. of Head
31 gpm
Standards
CSA22.2 108 Standard
Flow Rate @ 15 Ft. of Head
27 gpm
Switch Actuation
Vertical Float
Flow Rate @ 20 Ft. of Head
22 gpm
Switch Electrical Connection
Integral
HP
1/2 hp
Width at Widest Point
10 29/32 in
Includes
1-1/4 in to 2 in PVC Adaptor
Product Description
These general purpose 110 to 120V sewage grinder pumps shred large particles into small fragments so the waste can be pumped into a sewage system. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
