DAYTON

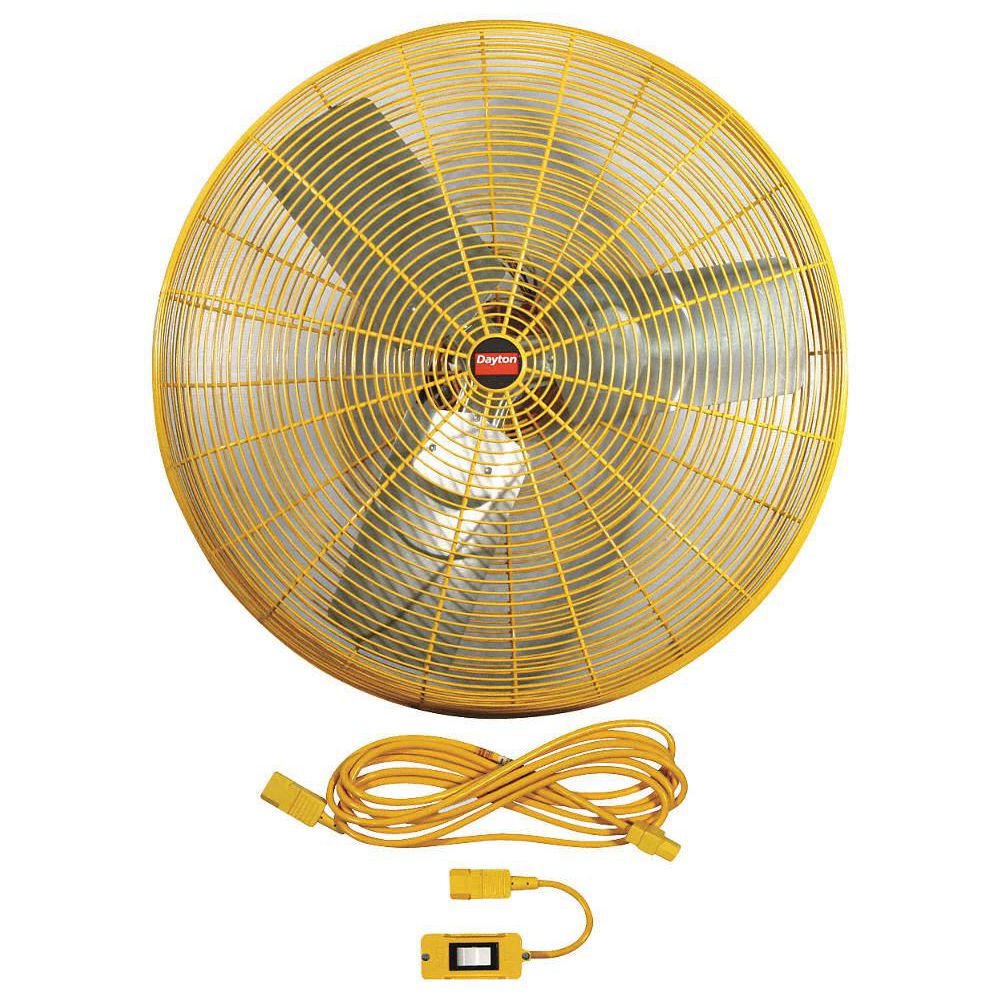

Dayton 24" High- Visibility Industrial Fan, Stationary, Fan Head Only, 115 VAC

Hover over image to magnify
Safety Yellow Aircirc,24 In,
Safety Yellow Aircirc,24 In,
Double tap image to magnify
Safety Yellow Aircirc,24 In,
Safety Yellow Aircirc,24 In,

#926091-1Pkg Qty: 1

$463.10 pkg | $463.10 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Required Items

Items below are required. They are not included and need to be ordered separately.
Pedestal Base, 27" Dia.
Pkg Qty: 1
$194.99 pkg
Pedestal Base, 27" Dia.
Pkg Qty: 1
$194.99 pkg
Pedestal Base, 27" Dia.
Pkg Qty: 1
$194.99 pkg

Technical Specifications

Key Specifications
Air Flow
3,800/6,100 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
Yes
Mounting Location
Fan Head Only
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
24 in.
Number of Blades
3
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
No
Cord Length
10 ft.
Outside Diameter
33 in.
Drive Type
Direct
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
1/2 in.
Item
Industrial Fan Head
Shipping Weight
53 lb.
Mfr. Part Number
1VCH4
Sound Level
74 dBA
Mobile/Stationary
Stationary
Standards
OSHA Compliant Wire Guards; UL; cUL
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Automatic
Motor HP
1/3
Voltage
115V AC
Motor Insulation
Class B
Watts
450/350
Motor RPM
1100/850
Width
33 in.
General
Air Velocity @ 10 Ft.
940/660 fpm
Environmental Applications
Industrial
Air Velocity @ 20 Ft.
520/365 fpm
Fan Mounting Location
Fan Head Only
Air Velocity @ 40 Ft.
265/185 fpm
Includes
15 ft Extension Cord, 3 Position Drop Cord Switch, Mounting Bolts
Air Velocity @ 60 Ft.
120/85 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Wire Guard Finish
Polyester Powder Coated Safety Yellow

Product Description

High-visibility industrial fan heads have a safety-yellow finish that attracts attention to help avoid accidental damage to the fan. They're ideal for cooling high-traffic areas where forklifts and other vehicles are used as well as low-light areas where fans may be difficult to see. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.

Industrial fan heads are assemblies for replacing a broken fan head on an existing mount or pairing with a new mount to create a fan suited for a specific environment or application. These fan blade, motor, and guard assemblies are used with a separate base or mounting bracket. They are made of heavy-gauge materials suitable for daily use in industrial cooling and temperature-regulation applications. Their powerful motor drives the fan blades to move large volumes of air, is totally enclosed to keep out dirt and dust, and features high-performance bearings for a long life. The guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
