HUBBELL WIRING DEVICE-KELLEMS

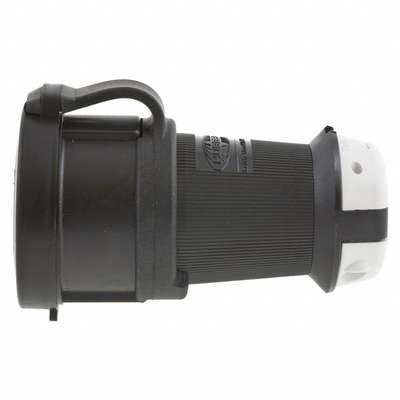

Hubbell Wiring Device-Kellems 20 Amp Industrial Grade Watertight Locking Connector, L5-20R NEMA Configuration, Black/White
Hover over image to magnify
#926082-5 | Pkg Qty: 1
$150.87 pkg | $150.87 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Minimum Operating Temperature
-40 °C
Amps
20 A
Minimum Wire Size
16 AWG
Antimicrobial
No
NEMA Configuration - Plugs & Connectors
L5-20
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L5-20R
Cap Type
Press-On Cap
NEMA Rating
12, 4, 4X
Color Family
Black / White
NEMA Receptacle Configuration
L5-20R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Brass
Number of Wires
3
Cord Size
0.360 in to 0.930 in
Outside Diameter
7.94 in.
Corrosion Resistant
No
Overall Length
2.57 in.
Current Rating
20 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Single
Grade
Industrial/Commercial
Power Indicating Light
No
Grounding
Grounded
Power Indicator
No
HP
1 HP
Shipping Weight
.6 lb.
Horsepower
1 hp
Shrouded
Yes
Housing Material
Valox
Standards
CSA Certified Type 4, 4X and Type 12, UL Listed
IP Rating
IP66
Sub-Category
Connectors
Item
Watertight Locking Connector
Type
Watertight Safety Shroud Twist Lock
Material
Impact Modified PBT
UL 94 Flammability Rating
V-0
Material of Construction
Impact Modified PBT
Voltage
125VAC
Maximum Operating Temperature
75 °C
Voltage Rating
125V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
HBL2313SW
Wiring Style
Standard
Midget Locking
No
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L5-20R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
HP
1.0
Product Description

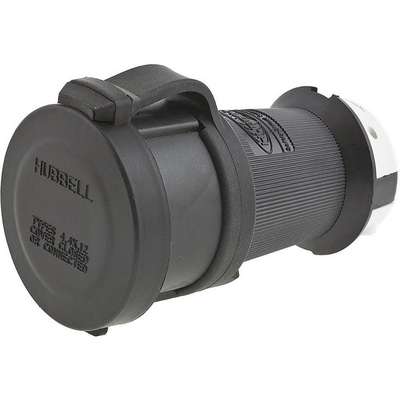

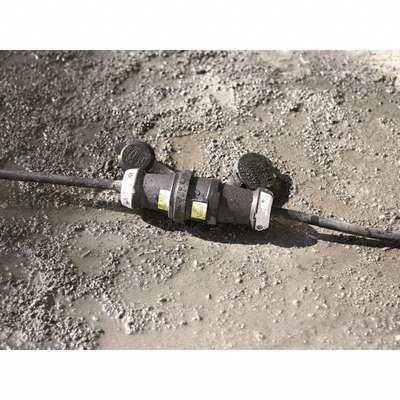

A closure cap on this Watertight Safety-Shroud Twist-Locks® connector body helps prevent the ingress of water under hose-down conditions. It features stainless steel hardware, 1-pc. thermoplastic housing, and a lockout-tagout hole that complies with OSHA regulations.
Expertly Selected Product Pairings
Item Barcode
Connector,125VAC,20A,L5-20R,2P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4CT66 | Connector, 125VAC,20A, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-008-004 | Connector, 125VAC,20A, |
