HUBBELL

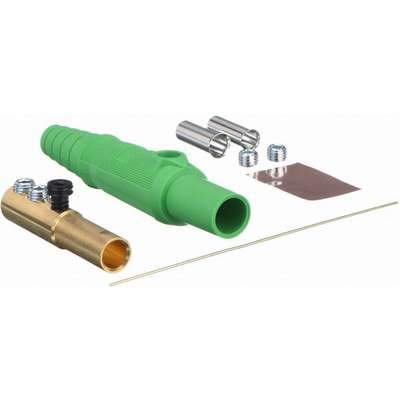

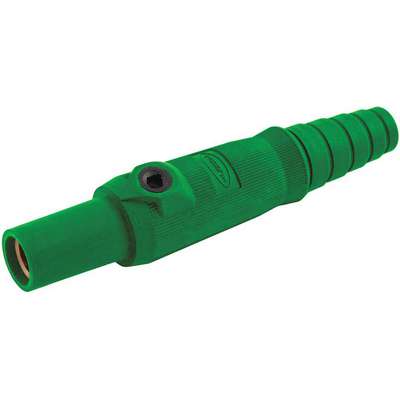

Hubbell Connector, 12, 3R, 4X NEMA Rating, 15, 150AC/DC Amps AC/DC, Taper Nose
Hover over image to magnify
#926081-1 | Pkg Qty: 1
$29.56 pkg | $29.56 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
150
Material of Construction
Thermoplastic Elastomer
Amps AC/DC
150AC/DC
Maximum Operating Temperature
75 °C
Brand
HUBBELL
Maximum Wire Size
2 AWG
Cable Range
8 to 2
Mfr. Part Number
HBL15FGN
Cable Size Range
3-7/8 to 7-25/32 in.
Minimum Operating Temperature
-40 °C
Color Family
Green
Minimum Wire Size
8 AWG
Compatible With
15
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Overall Length
4.6 in.
Contact Material
Brass
Package Quantity
1
Contact Type
Single Cam
Power Terminals Wire Size
#8 to #2 AWG
Current Rating
150 A
Series
15
Device Type
Female Connector
Shipping Weight
1.8 lb.
End Type
Taper Nose
Single Pole Device Style
Taper Nose
Fits
UL1691
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Housing Material
Thermoplastic Elastomer
Terminal Connection
Double Set Screw
Item
Connector
Type
Female
Male/Female
Female
Voltage Rating
250V DC, 600V AC
Material
Thermoplastic Elastomer
General
Compatible with Series
15
Overall Width
1 in
Gender
Female
Terminal Connection Type
Double Set Screw
Housing Color
Green
Product Description
Connector, NEMA Rating 12, 3R, 4X, Series 15, Amps AC/DC 150AC/DC, Single Pole Device Style Taper Nose, Cable Range 8 to 2, Voltage Rating 600V AC/250V DC, Terminal Connection Double Set Screw, Male/Female Female, Color Green, Material Thermoplastic Elastomer, Conductor Material Brass, Fits UL1691, Power Terminals Wire Size #8 to #2 AWG, Standards cUL, UL
Expertly Selected Product Pairings
Item Barcode
Connector,3R, 4X, 12,Female,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 20TP96 | Connector,3R, 4X, 12, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector,3R, 4X, 12, |
