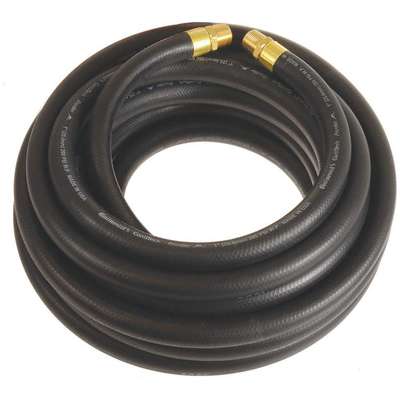

Air Hose: 1 in Hose Inside Dia., Black, Brass 1 in MNPT x Brass 1 in MNPT, 25 ft Hose Lg

Hover over image to magnify
Air Hose,Black,1" I.D.,25 Ft.
Air Hose,Black,1" I.D.,25 Ft.

#926077-4 | Pkg Qty: 1

$212.23 pkg | $212.23 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Air Hose
Color Family
Black
Maximum Pressure
200 psi
Coupled Assembly/Bulk
Coupled Assembly
Mfr. Part Number
HZB10020-025-11-G
Cover Material
EPDM
Outside Diameter
1-7/16 in.
Fitting Material
Brass
Package Quantity
1
Fitting Size
1 in. x 1 in.
Shipping Weight
18 lb.
Fitting Type
MNPT x MNPT
Subgroup | Pneumatic Hose
Multipurpose Air Hose
Hose Length
25 ft.
Temperature Range
-40 deg. F to 210 deg. F
Hose Media
Air, Mild Chemicals, Water
Tube Material
EPDM
Inside Diameter
1 in.
General
Compatible Chemicals
Deionized Water, Fresh Water
Hose Fitting B Type
MNPT
Coupling Material
Brass
Hose Fittings
Brass 1 in MNPT x Brass 1 in MNPT
For Media Type
Air, Lubricated Air, Water
Hose Outside Dia.
1 7/16 in
Hose Configuration
Coupled Assembly
Hose Tube Material
EPDM
Hose Cover Material
EPDM
Max. Working Pressure @ 70 F
200 psi
Hose Fitting A Material
Brass
Safety Factor
4:1
Hose Fitting A Type
MNPT
Standards
RMA Class C
Hose Fitting B Material
Brass

Product Description

EPDM (ethylene propylene diene monomer) air hose assemblies with EPDM covers are used to convey compressed air or water to tools and equipment in industrial, construction, and agricultural applications. The hoses have an EPDM tube and an EPDM cover that provide excellent resistance to heat, cold, weather, and ozone and offer mild resistance to chemicals.

Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to tools and equipment. These hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use.

Item Barcode
9260774
Air Hose,Black,1" I.D.,25 Ft.
 NameItemDescription
Grainger DropshipGrainger Dropship52ZX56Air Hose, Black,1" I.D.
UNSPSC CODESUNSPSC CODES40142002
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Air Hose, Black,1" I.D.
