Square D Single Function Time Delay Relay, 24VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact F

Hover over image to magnify

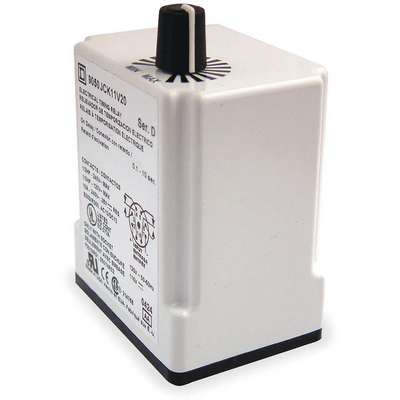

Time Delay Relay,24VAC/Dc,10A,
PI_Asset_1353799

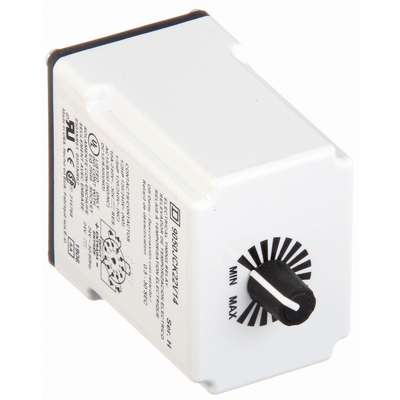

Time Delay Relay,24VAC/Dc,10A,
PI_Asset_1353799
Square D Single Function Time Delay Relay, 24VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact F Video

#926069 | Pkg Qty: 1

$123.37 pkg | $123.37 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 120/240 V
Item
Single Function Time Delay Relay
Adjustment Method
Potentiometer
Maximum Time Setting
30 sec.
Base Type
Octal
Mfr. Part Number
9050JCK22V14
Body Depth
1.71 in.
Minimum Time Setting
0.30 sec.
Body Height
3.39 in.
Mounting
Plug In
Body Width
2.4 in.
Number of Functions
1
Brand
SQUARE D
Number of Pins
11
Coil Rating
2VA
Number of Poles
2
Coil VA Rating
2
Operating Functions
2
Coil Volts
24 VAC/DC
Overall Height
4.1 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
11
DC Contact Rating
10 A @ 30 V
Relay Power Consumption
2.0 VA
Electrical Connection
Socket
Resistive Contact Amp Rating
10A
Function
Off Delay
Shipping Weight
.25 lb.
Hz
50/60
Socket
6X156, 1EGP2, 1EGP4
Input Power Consumption
2.0 VA
Socket Code
B
Input or Control Voltage
24 VAC/DC
General
AC Contact Rating - Relay
10A @ 120/240V
HP @ 240V
1/2
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
30 sec
Body Depth - Relay
1.71 in
Min. Time Setting - Timer
0.3 sec
Body Height - Relay
3.39 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
11
Contact Form - Relay
DPDT
Overall Height - Relay
4.1 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
2 VA
Function - Timing Relay
Off Delay
Standards
UL, CSA, CE
HP @ 120V
1/3
Timing Relay Functionality
Off Delay

Product Description

Single Function Time Delay Relay, Function - Timing Relay Off Delay, Coil Volts 24V AC/DC, AC Contact Rating - Relay 10A @ 120/240V, DC Contact Rating - Relay 10A @ 30V, Base Type - Plug In Relay Octal, Number of Pins - Relay 11, Mounting - Relay Plug In, Contact Form - Relay DPDT, Power Consumption - Relay 2.0 VA, Adjustment Method - Timer Potentiometer, Min. Time Setting - Timer 0.3 sec, Max. Time Setting - Timer 30 sec, Contact Material Silver Alloy
