PHILIPS ADVANCE
Electronic Ballast, 28 Max. Lamp Watts, 120-277 V, Programmed Start, Step Dimming
Hover over image to magnify
#926064-5 | Pkg Qty: 1
$64.73 pkg | $64.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
1/2
Lamp Watts
28 W
Ballast Family
Optanium
Length
9-1/2 in.
Ballast Type
Electronic
Mfr. Part Number
IOP-2S28-95-SC-SD
Brand
PHILIPS ADVANCE
Number of Lamps
2
Dimming
Yes
Package Quantity
1
Dimming Type
Step Dimming
Shipping Weight
.92 lb.
Height
1-3/16 in.
Start Type
Programmed
Item
Fluorescent Ballast
Voltage
120/277
Lamp Type
T5
Width
1-11/16 in.
General
Ballast Bulb Type
T5
Number of Bulbs Supported
1, 2
Ballast Factor
0.95
Number of F28T5 Lamps
2
Ballast Start Type
Programmed
Number of F35T5 Lamps
1
Brand and Series
Optanium
Operating Amps @ 120V
0.55 A
Dimming Method
0-10V
Power Factor
0.98
Dimming Range
100%/50%/0%
Total Harmonic Distortion
Less Than 10%
Max. Bulb Watts
28 W

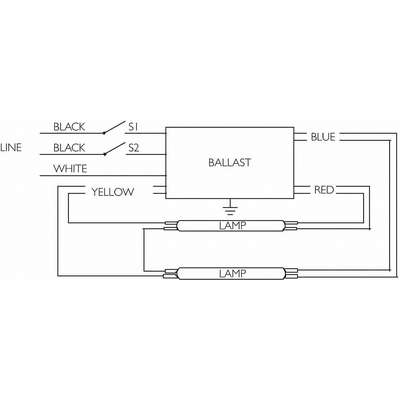

Wiring Type
Series
Min. Starting Temp.
0 Degrees F
Product Description
Two-phase step dimming ballasts are compatible with two-phase step dimming controls and are used in fluorescent lighting fixtures in classrooms, hallways, and other settings that don't require a wide range of dimming. They alter the supply voltage to dim the fixtures' light output to specific levels, for example 100% (full brightness), 50%, and 0% (off).
