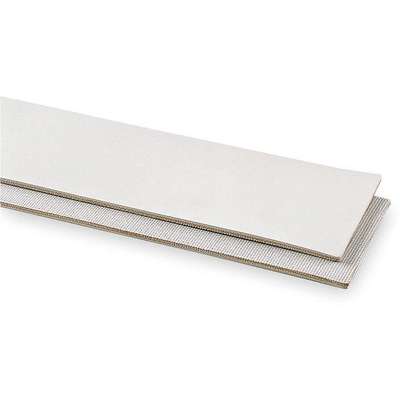

Apache Inc. Food-Grade Multi-Ply Conveyor Belt, Nitrile Rubber, 5/32" Belt Thickness, 6" Belt Width

Hover over image to magnify
Conveyor Belt,3Ply Pnt 150,
Conveyor Belt,3Ply Pnt 150,

#926054-8 | Pkg Qty: 1

$20.22 pkg | $20.22 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Belt Ply
3
For Minimum Pulley Diameter
3-1/2 in.
Belt Thickness
5/32 in.
Item
Replacement Conveyor Belt
Belt Width
6 in.
Maximum Working Tension
150 PIW
Bottom Surface
Friction
Mfr. Part Number
20028504-06
Brand
APACHE INC.
Package Quantity
1
Color Family
White
Shipping Weight
.48 lb.
Conveyor Belt Material
Nitrile Rubber
Top Surface
Smooth
For Lacing Type
Alligator Lacing, Clipper Lacing, Staple-Style Alligator Lacing
Type
White Nitrile
General
Application
Use With Clipper
Belt Width (In.)
6
Bed Depth (In.)
0.15625
Drive Pulley (In.)
Min 3 1/2
Belt Properties
Oil Resistant
Load Capacity (Lb.)
150
Belt Type
3 Ply PNT 150 White 3/64" By Friction Surface
Ordering Instructions
Cut to Length, 15 ft Minimum, Order by the Foot (Example - To Order 15 ft, Order Quantity Must be 15)

Product Description

Food-grade multi-ply conveyor belting is suitable for conveying edible products such as meat, grain, baked goods, snacks, and candy. The belting is made from materials and coatings that are FDA-certified for contact with food items. It may also have special features that optimize performance when conveying specific kinds of food, such as a low-friction coating that helps sticky candy slide off the belt. Use this belting to replace a worn or damaged belt on a conveyor in order to avoid belt malfunction and conveyor downtime.

Standard multi-ply conveyor belting can be used to replace a worn or damaged belt on a conveyor to prevent belt malfunction and conveyor downtime. It can also be used to upgrade an existing belt on a conveyor to a belt that is better suited for a specific environment or application. Sometimes called flat belting, multi-ply conveyor belting is made from material that has an internal layer of strong woven fabric surrounded by top and bottom covers that protect the inner layer. Mechanical fasteners (also known as belt lacing) or non-mechanical endless splicing techniques are used to join the ends of the belt and form a loop when installing the replacement conveyor belt on a conveyor. Multi-ply conveyor belting is commonly used in package handling, manufacturing, bulk material storage, and food processing applications.
