EATON BUSSMANN

Eaton Bussmann Fuse: 2.5 A, 250V AC, 100A at 250V AC/10kA at 125V AC, 20mm L x 5mm dia Fuse Size, 5 PK

Hover over image to magnify
Fuse,2-1/2A,Gmc,250VAC,PK5
Fuse,2-1/2A,Gmc,250VAC,PK5

#926047-9 | Pkg Qty: 5

$24.30 pkg | $4.86 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Voltage Rating
250 VAC
In Line Fuseholder
E
Amperage
2-1/2 A
Indicating / Nonindicating
Indicating
Body Material
Glass
Interrupt Rating
100A at 250 VAC, 10kA at 125 VAC
Body Style
Cylindrical
Item
Fuse
Brand
EATON BUSSMANN
Length
20 mm
DC Voltage Rating
Not Rated
Mfr. Part Number
GMC-2.5-R
Diameter
5 mm
Package Quantity
5
Element
Single
Rejection / Nonrejection
Nonrejection
Functionally Equal To
Mersen/Ferraz Shawmut GSC, Littelfuse 239
Series
Gmc
Fuse Amps
2-1/2A
Shipping Weight
.05 lb.
Fuse Holder Code
E
Speed
Time Delay
Fuse Interrupt Rating
100 A at 250 VAC, 10 kA at 125 VAC
Type
Electronic
Fuse Speed
Time Delay
Voltage Rating
250 VAC
Fuse Voltage Rating
250 VAC
General
Compatible Fuse Block Series
HTB
Fuse Size
20mm L x 5mm dia
Equivalent Series
239, GMC, GSC
Standards
CE, UL 248-14 Guide JDYX, CSA Certification Class 1422-01
Fits Fuse Block Style
Nonrejection
Visual Indication
Glass Fuse

Product Description

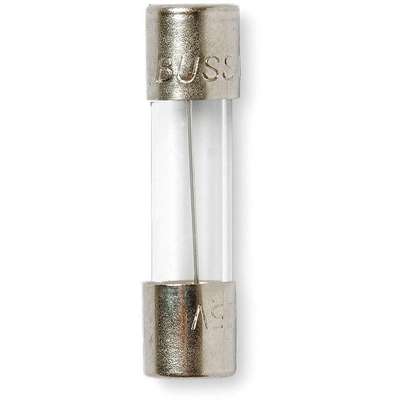

These cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits.

Glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
