Home All Products Electrical Plugs & Connectors Single Pole Devices SKU: 926041-4

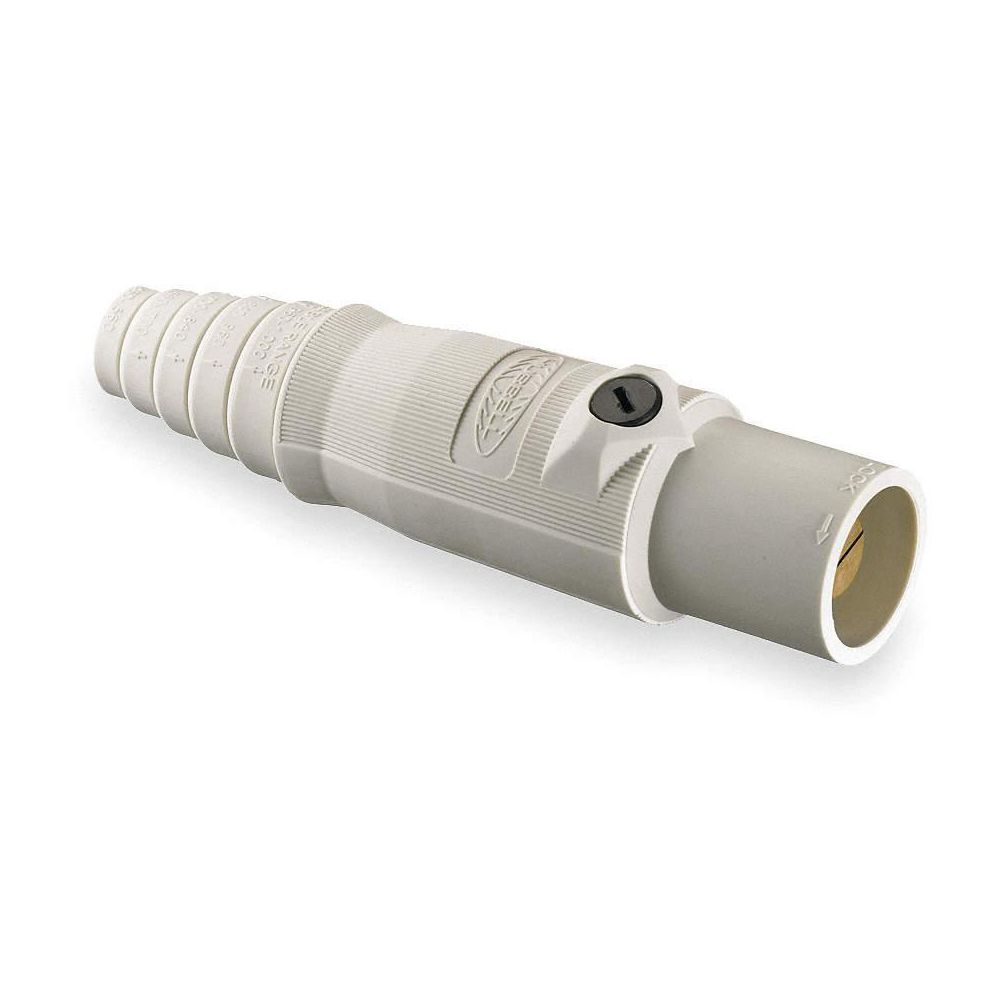

Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 300AC/DC Amps AC/DC, Taper Nose

Name: Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 300AC/DC Amps AC/DC, Taper Nose
Brand: HUBBELL WIRING DEVICE-KELLEMS
SKU: 9260414
Price: 61.35 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#926041-4Pkg Qty: 1

$61.35 pkg | $61.35 ea

In Stock

Shipping to 43085

Expected to arrive Thu. Mar 27.

Technical Specifications

Key Specifications

Amps AC

300

Material of Construction

Thermoplastic Elastomer

Amps AC/DC

300AC/DC

Maximum Wire Size

2/0 AWG

Brand

HUBBELL WIRING DEVICE-KELLEMS

Mfr. Part Number

HBL300MW

Cable Range

6 to 2/0

Minimum Wire Size

6 AWG

Color Family

White

NEMA Rating

12, 3R, 4X

Compatible With

15; 16; Insulgrip

Overall Length

7.01 in.

Conductor Material

Brass

Package Quantity

Contact Material

Brass

Series

Contact Type

Single Cam

Shipping Weight

.8 lb.

Current Rating

300 A

Single Pole Device Style

Taper Nose

End Type

Taper Nose

Standards

ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed

Housing Color

White

Terminal Connection

Double Set Screw

Housing Material

Thermoplastic Elastomer

Type

Single Pole Device

Item

Connector

UL 94 Flammability Rating

Male/Female

Male

Voltage Rating

250V DC, 600V AC

Material

Thermoplastic Elastomer

General

Compatible with Series

15; 16; Insulgrip

Overall Width

1.95 in

Gender

Male

Terminal Connection Type

Double Set Screw

Product Description

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.
